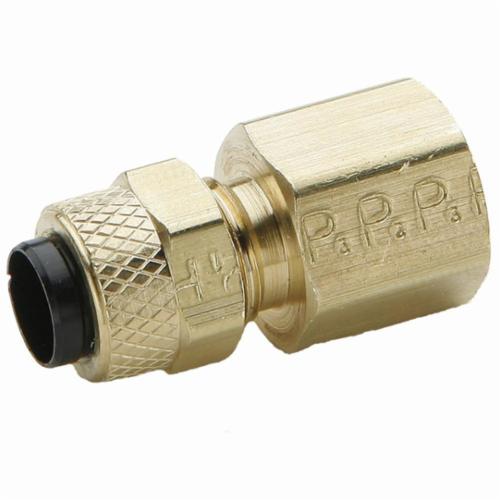

Parker 66P-6-4 Poly-Tite 66P Compression Connector 3/8 x 1/4 in Nominal

Product Description

Parker's Poly-Tite fittings facilitate quick installations. The body, nut, and sleeve come pre-assembled for easy setup. The acetal copolymer sleeve is resistant to creeping and stress from compression. It also withstands UV radiation while maintaining dimensional stability. The Poly-Tite nuts rotate around the sleeve as they tighten, which prevents twisting and damage to the plastic tubing. These fittings are designed for repeated assembly and disassembly.

The Parker Compression Connector is part of the Poly-Tite 66P series. It features a nominal size of three-eighths by one-quarter inches, with a tube to female pipe end style. The hex size is five-eighths inches and the length of the connector is one point eighteen inches. It can handle pressures up to one hundred fifty psi and operates effectively between zero to one hundred fifty degrees Fahrenheit.

• Pre-assembled components
• Resistant to UV rays
• Suitable for repeated use

Product Highlights

This connector is ideal for applications requiring a reliable and robust connection between tubes and pipes.

Product Information

Standard Information

• Manufacturer: Parker Hannifin
• Brand: Parker

Technical Specifications

• Fitting/Connector Type: Adapter
• Nominal Size: 3/8 x 1/4 in
• Material: Brass
• Pressure Rating: 150 psi
• Temperature Rating: 0 to 150 deg F

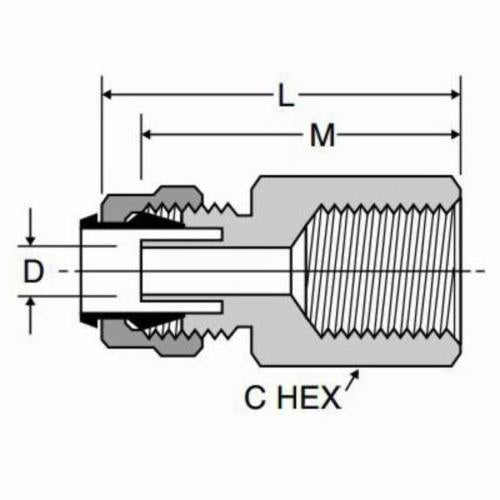

• Hex Size: 5/8 in
• Length: 1.18 in
• End Style: Tube x Female Pipe
