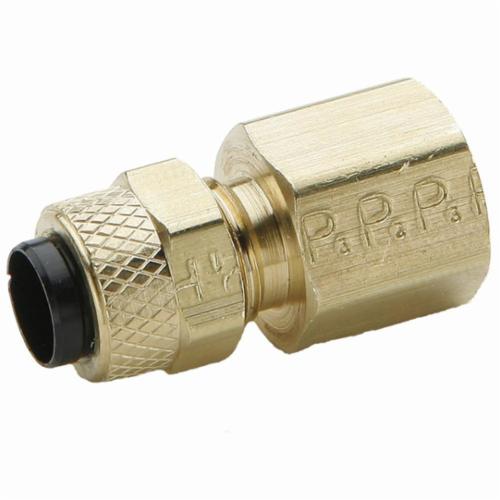

Parker 66P-4-4 Poly-Tite 66P Compression Connector, 1/4 in Nominal, Tube x Female Pipe

Product Description

Parker® 66P-4-4 Poly-Tite compression connector is designed for quick and easy installation in plumbing applications. The pre-assembled fittings include a body, nut, and sleeve, streamlining the installation process. The acetal copolymer sleeve adds resistance to compression stress and UV damage, ensuring long-lasting performance. As the nut tightens, it rotates around the sleeve to avoid twisting, allowing repeated assembly and disassembly.

• Compatible with polyethylene, nylon, polypropylene, and thermoplastic tubing.
• Pre-assembled for straightforward installation.
• Brass material enhances durability and performance.

Product Highlights

This compressive connector provides reliable performance in multiple plumbing applications. It is suitable for use in systems that require secure and leak-free connections.

Product Information

Standard Information

• Manufacturer: Parker Hannifin
• Part Number: 57192

Technical Specifications

• End Style: Tube x Female Pipe
• Fitting/Connector Type: Adapter
• Hex Size: 5/8 in
• Length: 1.18 in
• Material: Brass
• Nominal Size: 1/4 in
• Pressure Rating: 150 psi
• Temperature Rating: 0 to 150 deg F
• Series: Poly-Tite 66P
