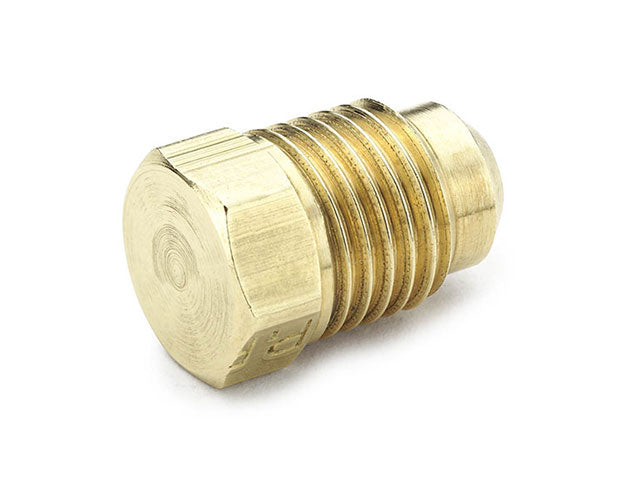

Parker 639F-10 Flared Seal Plug 45 Degree Flare 5/8 Inch

Product Description

The Parker 639F-10 is a 45 degree flare fitting designed for use with various types of metal tubing. This high-quality flared seal plug meets the requirements of SAE J512 and J513 standards. It is suitable for copper, brass, aluminum, or steel tubing that can be flared to a 45 degree angle. The product is listed with Underwriter’s Laboratories for safety and reliability.

• Meets SAE J512 and J513 standards
• Compatible with multiple tubing materials
• Pressure rating of 650 PSI

Product Highlights

The Parker 639F-10 is ideal for applications that require a secure and leak-free connection in fluid systems.

Product Information

Standard Information

• Manufacturer: Parker
• Part Number: 639F-10

Technical Specifications

• Outer Diameter: 5/8 Inch
• Thread Type: 7/8-14 UN/UNF
• Material: Brass
• Configuration Type: Auxiliary
• Configuration Sub-Type: Plug
• Operating Temperature: -65°F to +250°F
• Pressure Rating: 650 PSI
• Series: 45 Degree Flare
