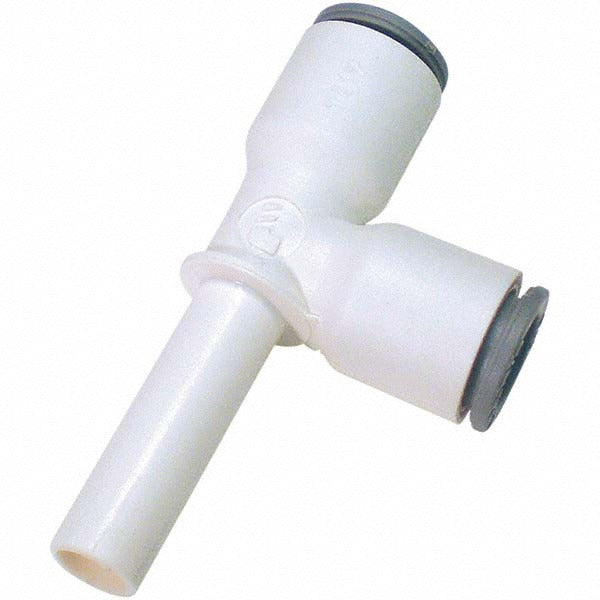

Parker 6383 62 00WP2 Push-to-connect Plug-in Run Tee

Product Description

The PARKER 6383 62 00WP2 is a push-to-connect plug-in run tee tube fitting designed for quick, tool-free connections in pneumatic and fluid-handling systems. Built from polymer construction, it accommodates 1/2 inch outside diameter tubing on both the run and branch ports and is rated to 230 psi working pressure. This fitting is suited for professionals who need a reliable inline branch connection without the need for threaded fittings or clamps. It installs by pushing compatible tubing directly into the fitting body, creating a secure, leak-resistant seal. HVAC technicians, plumbers, and industrial service techs working with push-to-connect tube systems will find this a straightforward, time-saving component.

This fitting is used in applications where an inline tee branch connection is needed in push-to-connect tubing systems rated within the 230 psi working pressure limit. Common install scenarios include compressed air distribution lines, pneumatic control circuits, and low-pressure fluid handling runs in commercial and light industrial environments. The plug-in run tee design allows the main run of tubing to pass through the fitting with a branch port tapping off at 90 degrees, simplifying routing in tight spaces.

Key Features

• Push-to-connect design allows tool-free tube insertion and secure hold
• Rated to 230 psi working pressure
• Compatible with 1/2 inch OD tubing on run and branch ports
• Polymer body construction for corrosion resistance in compatible media
• Compact form factor at 1.93 x 1.93 x 0.87 inches for installation in tight spaces
• Plug-in run tee geometry simplifies inline branch routing

Compatibility

Designed for use with push-to-connect tube systems using 1/2 inch outside diameter tubing operating within a 230 psi working pressure rating. Consult system documentation to confirm media and pressure compatibility before installation.

Installation Notes

Installation should be performed by a qualified technician familiar with push-to-connect pneumatic or fluid-handling systems. Before installation, depressurize and isolate the line completely. Ensure tubing ends are cut cleanly and squarely to achieve a proper seal; deformed or angled cuts can result in leaks or fitting failure. After insertion, verify tube seating by gently pulling back on the tubing to confirm the collet has engaged.
