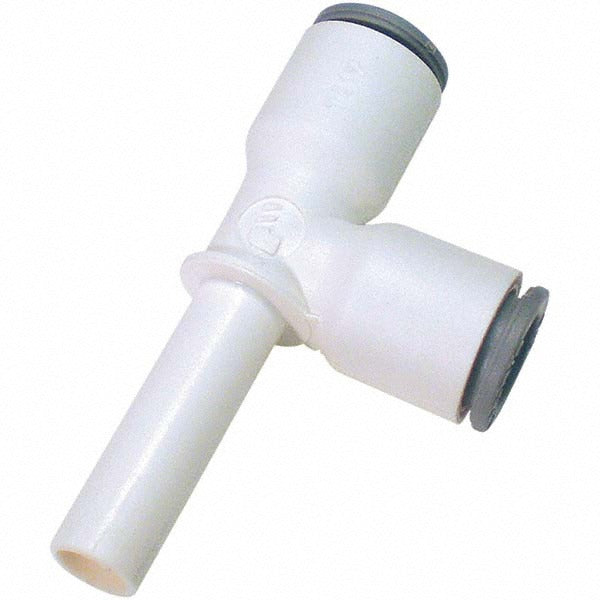

Parker 6383 56 00WP2 Push-to-connect Plug-in Run Tee

Product Description

The PARKER 6383 56 00WP2 is a push-to-connect plug-in run tee tube fitting designed for fast, tool-free connections in pneumatic and fluid distribution lines. Constructed from polymer, this fitting handles working pressures up to 230 psi and accepts tubing with outside diameters of 1/2 inch on both run ports and 1/4 inch on the branch port. Its push-to-connect design eliminates the need for wrenches or sealants at the point of connection, reducing installation time on the bench or in the field. HVAC technicians, plumbers, and pneumatic system installers are the primary trades that work with this type of fitting.

This fitting is suited for use in residential and light commercial applications where pneumatic tubing, control-line tubing, or low-pressure fluid lines are routed through a tee configuration. The run tee orientation allows the main line to continue straight through while a smaller 1/4 inch branch is tapped off, making it a practical choice for instrument air lines, control tubing runs, and similar distribution layouts. Its compact polymer construction keeps weight low and resists corrosion in typical indoor mechanical environments.

Key Features

• Push-to-connect design allows tool-free tube insertion and release
• Plug-in run tee configuration supports a straight-through main line with a reduced branch port
• Rated to 230 psi working pressure
• Polymer body construction resists corrosion and reduces overall fitting weight
• Compact dimensions suit tight mechanical spaces
• Accepts 1/2 inch OD tubing on run ports and 1/4 inch OD tubing on the branch port

Compatibility

Designed as an OEM-style push-to-connect replacement fitting for pneumatic and fluid distribution systems using 1/2 inch and 1/4 inch OD tubing.

Installation Notes

Depressurize and de-energize the system completely before removing or installing any push-to-connect fittings. Ensure tubing ends are cut cleanly and squarely with no burrs or oval deformation before insertion, as irregular tube ends can compromise the internal collet seal. Verify that tubing outside diameter and material are compatible with the fitting rating before pressurizing. Installation is typically performed by licensed HVAC technicians or plumbers following applicable mechanical codes.
