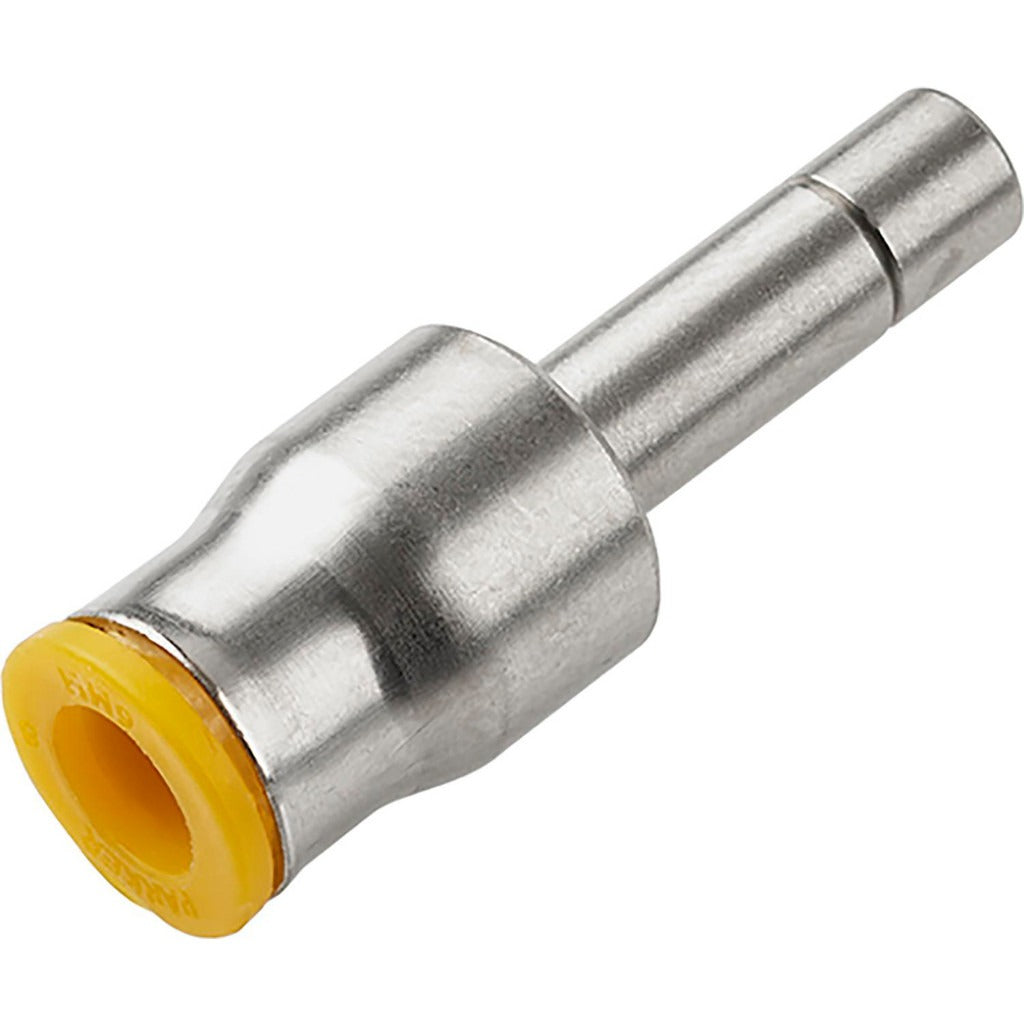

Parker 62PLPSP-8M-6M Push-to-connect Expander Fitting

Product Description

The PARKER 62PLPSP-8M-6M is a push-to-connect tube-to-stem expander fitting in a straight configuration, designed for use in pneumatic and fluid-transfer systems where tube expansion and secure connections are required. Constructed from nickel-plated brass, this fitting handles a maximum working pressure of 300 psi and operates across a temperature range of 0 to 200 degrees F. The connection type is tube-to-stem, with an 8.00 mm tube outside diameter on the push-to-connect end. It is installed by HVAC technicians, plumbers, and pneumatic system technicians requiring a reliable, tool-free tube connection in tight or inline installations.

This fitting is suited for residential and light commercial pneumatic and fluid-transfer applications where push-to-connect convenience is preferred. The straight expander configuration makes it appropriate for inline tube transitions and stem-to-tube assemblies. Its silicone-free grease construction makes it compatible with environments where silicone contamination is a concern, such as certain HVAC and instrumentation systems. The yellow release button allows for straightforward tube removal without specialty tooling.

Key Features

• Push-to-connect design allows tool-free tube insertion and release via yellow release button
• Nickel-plated brass construction provides corrosion resistance in pneumatic and fluid-transfer service
• Rated to 300 psi maximum working pressure
• Operating temperature range of 0 to 200 degrees F suits a broad range of service environments
• Silicone-free grease meets requirements for silicone-sensitive applications
• Meets UL94 V-0 flame resistance standard

Compatibility

Designed as an OEM-style push-to-connect tube-to-stem replacement fitting for pneumatic and fluid-transfer systems accepting an 8.00 mm outside diameter tube on the push-to-connect end.

Installation Notes

Installation should be performed by a qualified technician. Depressurize and isolate the system completely before removing or installing any fittings. Ensure the tube end is cut cleanly and squarely and is free of burrs before insertion into the push-to-connect port. Press the yellow release button to disengage the tube when removal is needed.
