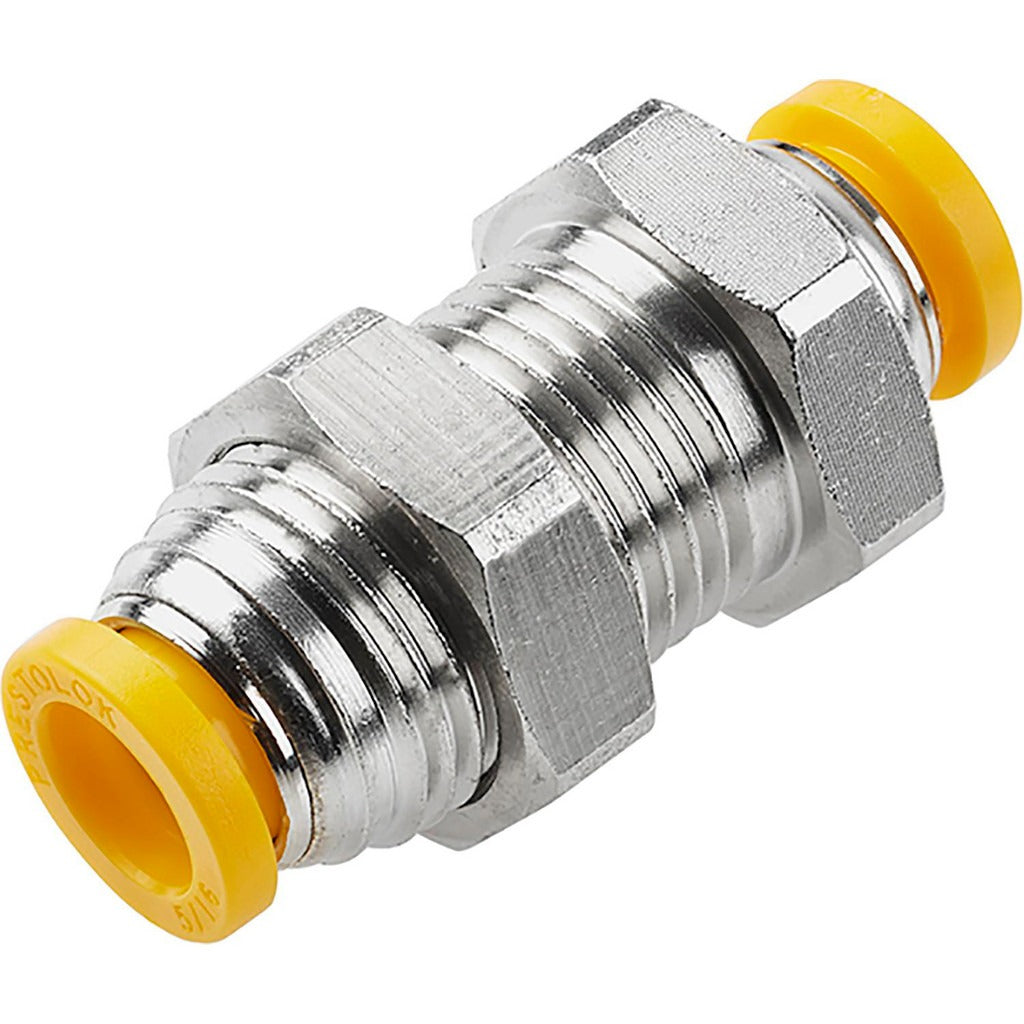

Parker 62PLPBH-8M Bulkhead Union Fitting 8mm 300 Psi

Product Description

The PARKER 62PLPBH-8M is a straight push-to-connect bulkhead union fitting designed for tube-to-tube connections. It accepts 8mm outside diameter tubing on both sides and delivers a tool-free, leak-resistant seal rated to 300 psi maximum working pressure. The body is nickel-plated brass, which provides corrosion resistance suitable for pneumatic and fluid-handling lines. A yellow release button allows the tubing to be disconnected quickly without tools. This fitting is installed by licensed plumbers, HVAC technicians, and pneumatic system technicians where a bulkhead panel pass-through is required between two tube runs.

This fitting is suited for use in pneumatic control systems, fluid distribution panels, and equipment enclosures where a tube line must pass through a panel or bulkhead wall. It performs across a wide temperature range, rated from 0 degrees F to 200 degrees F, making it appropriate for both indoor climate-control equipment and light industrial applications. The silicone-free grease used in the fitting is compatible with systems where silicone contamination is a concern, such as paint spray environments or certain sensor-equipped assemblies.

Key Features

• Push-to-connect design accepts 8mm OD tubing on both ports with no tools required for insertion
• Yellow release button enables quick, tool-free tube removal for service or reconfiguration
• Nickel-plated brass construction resists corrosion in pneumatic and fluid-handling environments
• 300 psi maximum working pressure rating for demanding pneumatic lines
• Silicone-free grease formulation suitable for silicone-sensitive systems
• UL94 V-0 flame resistance standard compliance

Compatibility

Designed as an OEM-style push-to-connect bulkhead union for pneumatic and fluid-handling tube lines using 8mm outside diameter tubing.

Installation Notes

Depressurize and isolate the pneumatic or fluid line completely before removing or installing this fitting. Ensure tubing ends are cut cleanly and squarely with no burrs before inserting into the push-to-connect ports. The fitting should be mounted through an appropriate panel knockout or hole to achieve a proper bulkhead seal. Follow applicable system pressure specifications and local mechanical codes during installation.
