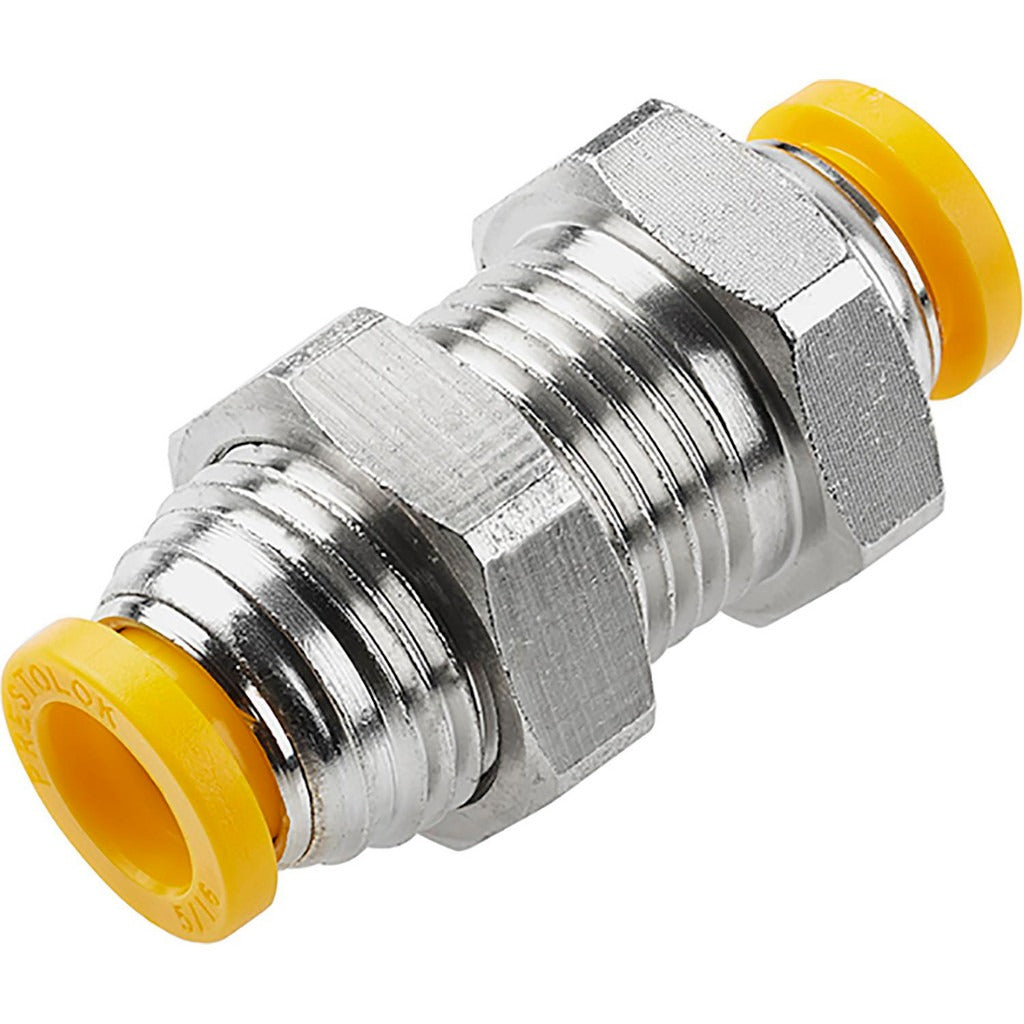

Parker 62PLPBH-6M Bulkhead Union Fitting 6mm 300 Psi

Product Description

The PARKER 62PLPBH-6M is a push-to-connect bulkhead union tube fitting designed for straight, tube-to-tube connections through a panel or bulkhead wall. Constructed from nickel-plated brass, it handles working pressures up to 300 psi and operates across a temperature range of 0 degrees F to 200 degrees F. The push-to-connect design allows fast, tool-free tube insertion and release via a yellow release button, reducing installation time in tight spaces. Silicone-free grease is used in the fitting internals, making it suitable for applications where silicone contamination is a concern. HVAC technicians, plumbers, and industrial service pros use this fitting where tubing must pass cleanly through a panel or enclosure wall.

This bulkhead union is suited for residential and light commercial applications where 6mm OD tubing must be routed through a partition, cabinet wall, or equipment enclosure. The straight configuration maintains a direct inline flow path. Its compact overall length of 1.34 inches and 11/16-inch hex size make it practical in confined installations. The UL94 V-0 flame resistance rating makes it appropriate for use near ignition sources or in equipment that requires flame-retardant components.

Key Features

• Push-to-connect design allows fast, tool-free tube insertion and removal via yellow release button
• Nickel-plated brass construction resists corrosion and provides a durable silver finish
• Rated to 300 psi maximum working pressure
• Operating temperature range from 0 degrees F to 200 degrees F
• UL94 V-0 flame resistance rating for use in flame-retardant-required applications
• Silicone-free grease for compatibility with silicone-sensitive systems

Compatibility

Designed for use with 6mm outside diameter tubing in push-to-connect tube-to-tube bulkhead applications. Verify panel thickness and tubing OD before installation to confirm proper fitment.

Installation Notes

Installation is performed by qualified HVAC technicians, plumbers, or industrial mechanics. Depressurize and isolate the tubing circuit completely before removing or installing any fitting. Ensure the tube end is cut squarely, deburred, and fully inserted to the depth stop to achieve a proper seal. Consult applicable mechanical codes for panel penetration and fitting support requirements.
