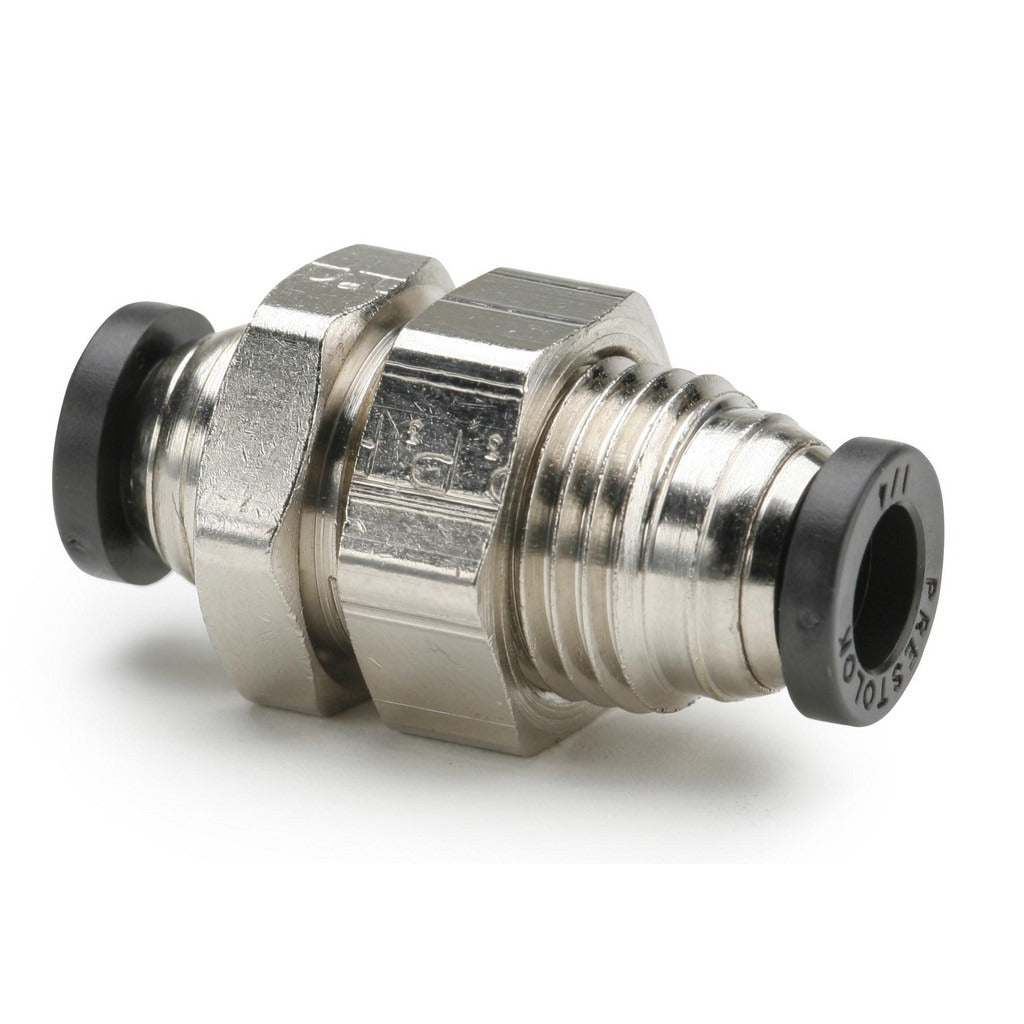

Parker 62PLPBH-5/32 Bulkhead Union Fitting 5/32 in Od

Product Description

The PARKER 62PLPBH-5/32 is a push-to-connect bulkhead union tube fitting designed for tube-to-tube connections through a panel or bulkhead wall. Constructed from nickel-plated brass with a nitrile O-ring, it handles a maximum working pressure of 300 psi and operates across a temperature range of 0 to 200 degrees F. The fitting accepts 5/32 inch OD tubing on both sides and installs without tools by inserting the tube until it seats and locks. The release button is made from black flame-resistant material rated to UL94 V-0. Plumbers, HVAC technicians, and instrumentation trades use this style of fitting in pneumatic control, fluid transfer, and low-pressure tubing systems.

This bulkhead union is suited for residential and light commercial applications where a tubing run must pass through a panel, enclosure wall, or equipment bulkhead. Typical uses include pneumatic control lines, instrument air circuits, and fluid transfer tubing where a secure, leak-free through-panel connection is needed. The push-to-connect design speeds installation in tight spaces and eliminates the need for ferrule compression tools or thread sealant on the tube end.

Key Features

• Push-to-connect design for fast, tool-free tube insertion and secure locking
• Nickel-plated brass body provides corrosion resistance in moderate-duty environments
• Rated to 300 psi maximum working pressure
• Operating temperature range of 0 to 200 degrees F with nitrile O-ring seals
• Flame-resistant release button compliant with UL94 V-0 standard
• Bulkhead configuration allows through-panel tube routing with a single fitting

Compatibility

Designed as an OEM-style push-to-connect bulkhead union for 5/32 inch OD tubing in pneumatic and fluid transfer plumbing systems.

Installation Notes

Installation should be performed by a qualified plumber, HVAC technician, or instrumentation mechanic. Depressurize and isolate the tubing system completely before removing or installing any fitting. Ensure tube ends are cut cleanly and squarely with no burrs before insertion to achieve a proper seal. Confirm the panel or bulkhead material is compatible with the fitting's lock nut torque requirements and that the fitting is fully seated before returning the system to service.
