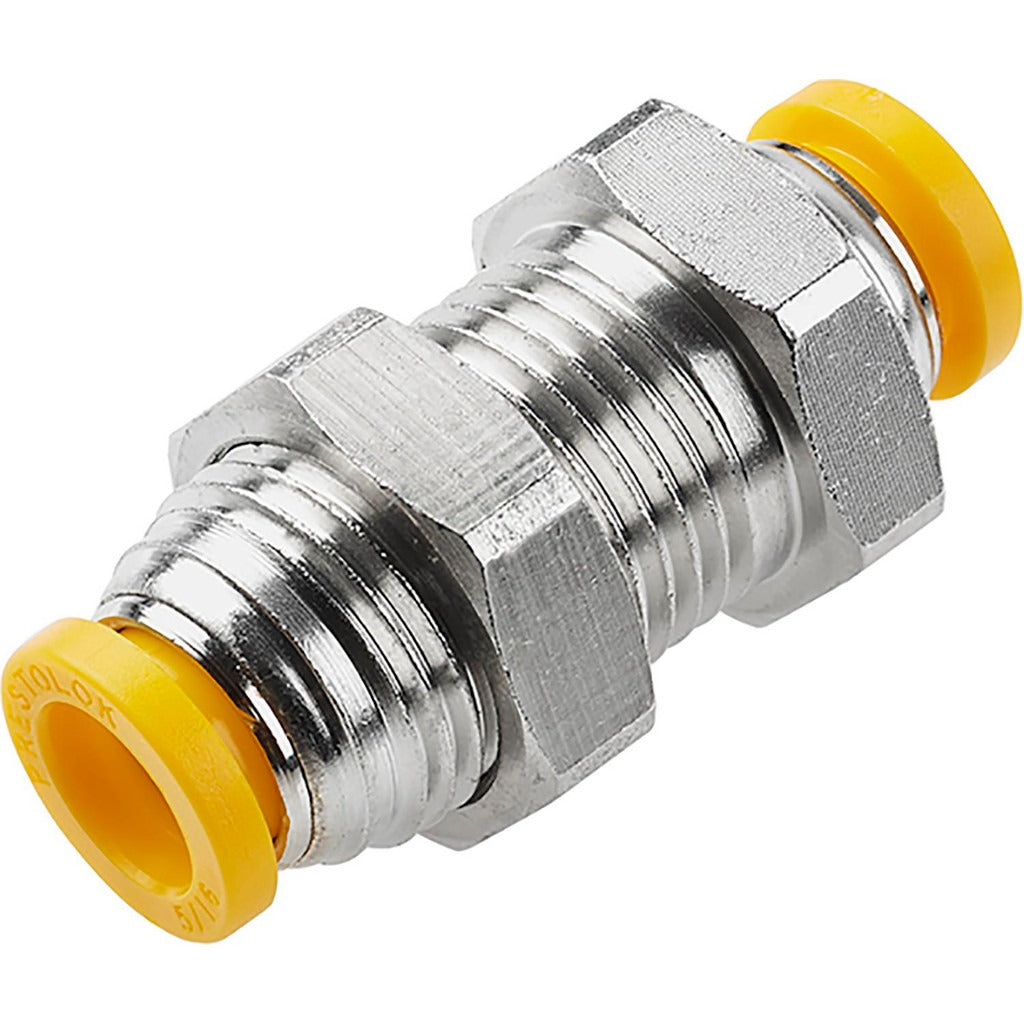

Parker 62PLPBH-12M Bulkhead Union Fitting 300 Psi 12mm

Product Description

The PARKER 62PLPBH-12M is a push-to-connect bulkhead union tube fitting designed for straight, tube-to-tube connections through a panel or bulkhead wall. Constructed from nickel-plated brass with a silicone-free grease lubricant, this fitting accepts 12mm outside diameter tubing and holds a maximum working pressure of 300 psi. The yellow release button allows for quick disconnection without additional tools. Licensed plumbers, HVAC technicians, and pneumatic system installers use this fitting in applications where a sealed, panel-mounted tube pass-through is required.

This fitting is suited for residential and light commercial pneumatic, fluid handling, and instrumentation systems where a bulkhead-style tube connection through a panel or enclosure wall is needed. The push-to-connect design speeds up installation and reduces the risk of assembly error in tight spaces. Its UL94 V-0 flame resistance rating and wide operating temperature range of 0 degrees F to 200 degrees F make it appropriate for a range of indoor service environments.

Key Features

• Push-to-connect design accepts 12mm OD tubing with no tools required for insertion
• Yellow release button enables quick, tool-free tube removal
• Nickel-plated brass body for corrosion resistance in fluid and pneumatic service
• Rated to 300 psi maximum working pressure
• UL94 V-0 flame resistance rating
• Silicone-free grease — compatible with sensitive instrumentation and painting environments
• Operates from 0 degrees F to 200 degrees F

Compatibility

Designed as an OEM-style push-to-connect bulkhead union for systems using 12mm outside diameter tubing in pneumatic or fluid handling applications where panel pass-through connections are required.

Installation Notes

Installation is performed by licensed plumbers, HVAC technicians, or instrumentation mechanics depending on the system type. De-pressurize and isolate the line completely before removing or installing any push-to-connect fitting. Ensure tubing is cut cleanly and squarely and that the outside diameter is within specification before insertion to maintain a proper seal. Verify the bulkhead panel thickness is compatible with the fitting before mounting.
