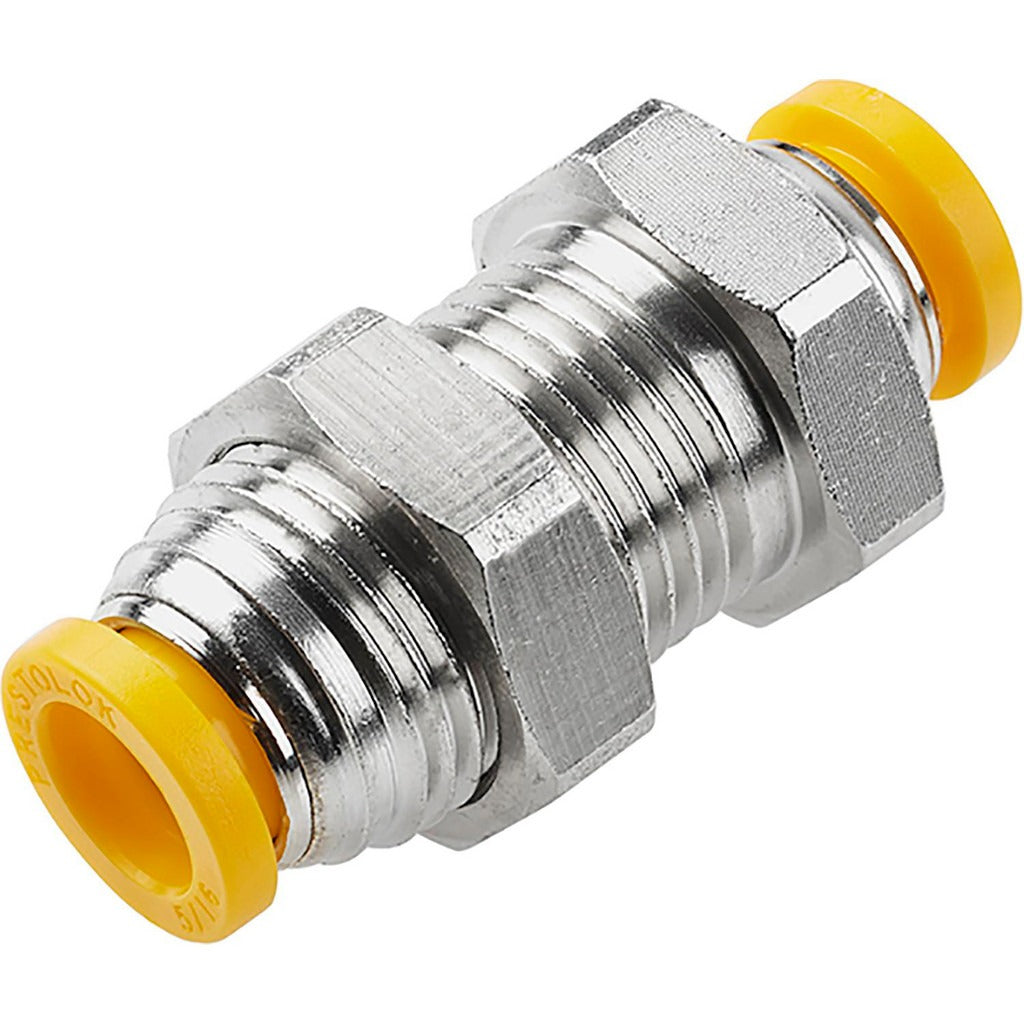

Parker 62PLPBH-10M Bulkhead Union Fitting 10mm 300 Psi

Product Description

The PARKER 62PLPBH-10M is a push-to-connect bulkhead union tube fitting designed for straight, tube-to-tube connections through a panel or bulkhead. Constructed from nickel-plated brass, it handles working pressures up to 300 psi and operates across a temperature range of 0 to 200 degrees F. The fitting accepts 10mm outside diameter tubing and uses a tool-free push-to-connect mechanism with a yellow release button for disconnection. It meets the UL94 V-0 flame resistance standard and is assembled with silicone-free grease, making it suitable for systems where silicone contamination is a concern. Licensed plumbers, HVAC technicians, and instrumentation technicians typically install this type of fitting in fluid or pneumatic control circuits.

This fitting is suited for residential and light commercial applications where tubing must pass through a panel wall or equipment enclosure and maintain a secure, sealed connection on both sides. The straight bulkhead configuration allows a single fitting to mount flush through a partition, eliminating the need for additional adapters. Common use cases include pneumatic control lines, fluid transfer systems, and equipment enclosures where a clean panel penetration is required. The 10mm OD tube size is standard in metric pneumatic and fluid handling systems.

Key Features

• Push-to-connect design accepts 10mm OD tubing without tools for quick installation and release
• Nickel-plated brass construction provides corrosion resistance in demanding service environments
• Rated to 300 psi maximum working pressure for pneumatic and fluid applications
• Operating temperature range of 0 to 200 degrees F suits a wide range of system conditions
• UL94 V-0 flame resistance rating meets common safety standards for control panel use
• Silicone-free grease assembly compatible with systems sensitive to silicone contamination
• Yellow release button allows fast, tool-free tube disconnection without fitting removal

Compatibility

Designed as an OEM-style push-to-connect bulkhead union for systems using 10mm outside diameter tubing in pneumatic or fluid transfer applications rated up to 300 psi.

Installation Notes

Depressurize and de-energize the system fully before installing or removing any push-to-connect fitting. Ensure tubing ends are cut cleanly and squarely with no burrs, as irregular cuts can compromise the internal collet seal. The bulkhead nut must be torqued to panel-mounting specifications per the equipment manufacturer's guidance. This fitting is typically installed by licensed plumbers, HVAC technicians, or instrumentation mechanics following applicable system design and safety codes.
