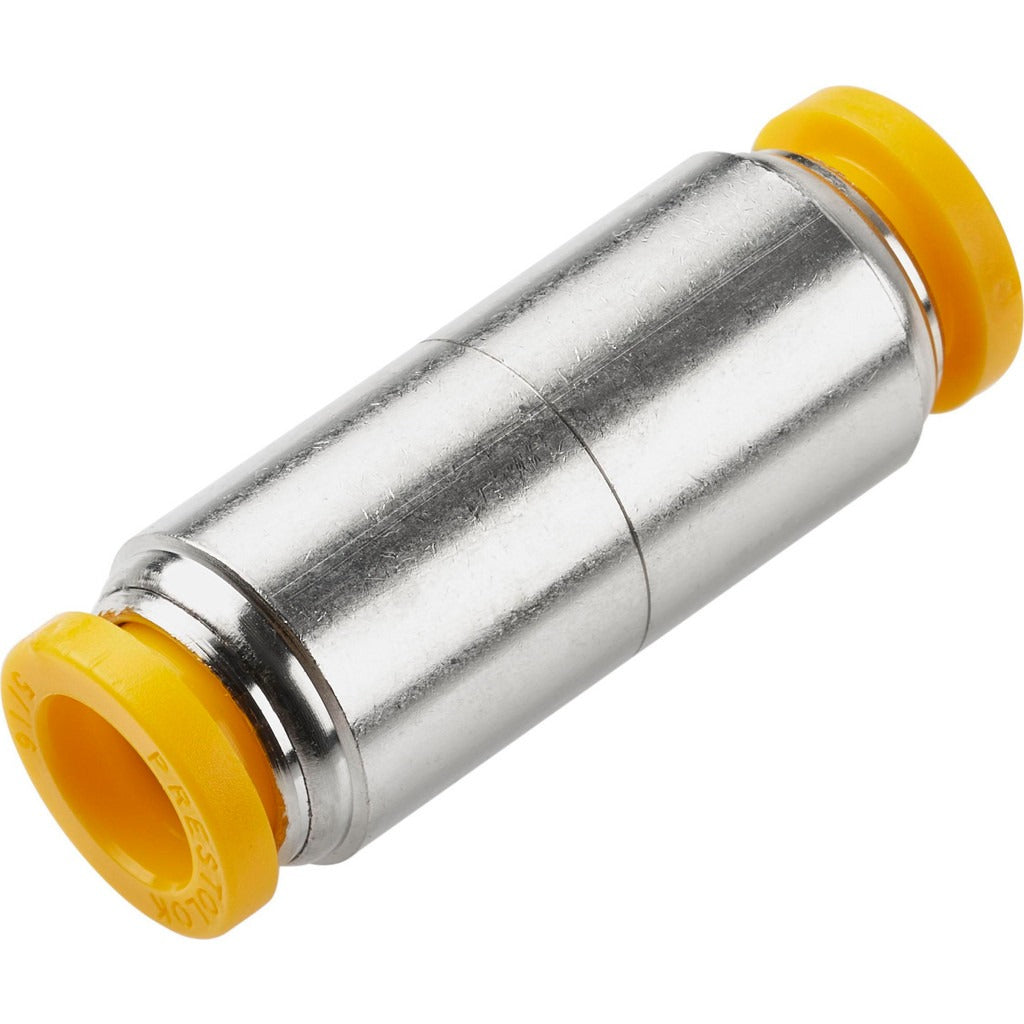

Parker 62PLP-8M Push-to-connect Union Straight Fitting

Product Description

The PARKER 62PLP-8M is a push-to-connect straight union tube fitting designed for tube-to-tube connections in compressed air, pneumatic control, and fluid transfer systems. Constructed from nickel-plated brass with a silicone-free grease lubricant, it meets the UL94 V-0 flame resistance standard. The fitting accepts 8mm outside diameter tubing and handles working pressures up to 300 psi across a temperature range of 0 to 200 degrees F. A yellow release button allows fast, tool-free disconnection. Licensed HVAC technicians, plumbers, and industrial service techs install this fitting where a reliable, reusable inline tube union is required.

The 62PLP-8M is suited for residential and light commercial pneumatic and fluid system installations where 8mm OD tubing is routed in straight runs requiring a union joint. Its compact overall length of 1.65 inches keeps installations tight in confined panel or cabinet spaces. The silicone-free grease formulation makes it appropriate for environments where silicone contamination is a concern, such as paint booths or certain electronic assembly areas. The silver body with yellow release button provides quick visual identification at the connection point.

Key Features

• Push-to-connect design allows tool-free tube insertion and one-handed release via yellow button
• Rated to 300 psi maximum working pressure
• Nickel-plated brass body provides corrosion resistance in moderate-duty environments
• UL94 V-0 flame resistance rating for code-sensitive installations
• Silicone-free grease lubricant compatible with silicone-sensitive applications
• Operating temperature range of 0 to 200 degrees F suits most HVAC and pneumatic control applications

Compatibility

Designed for use with 8mm outside diameter tubing in push-to-connect pneumatic and fluid transfer systems requiring a straight inline union connection.

Installation Notes

Installation is performed by licensed HVAC technicians, plumbers, or pneumatic system technicians. Depressurize and isolate the line completely before disconnecting or inserting tubing. Ensure tubing ends are cut square and free of burrs before inserting into the fitting to maintain a leak-free seal. To release tubing, press the yellow collar inward while pulling the tube straight out.
