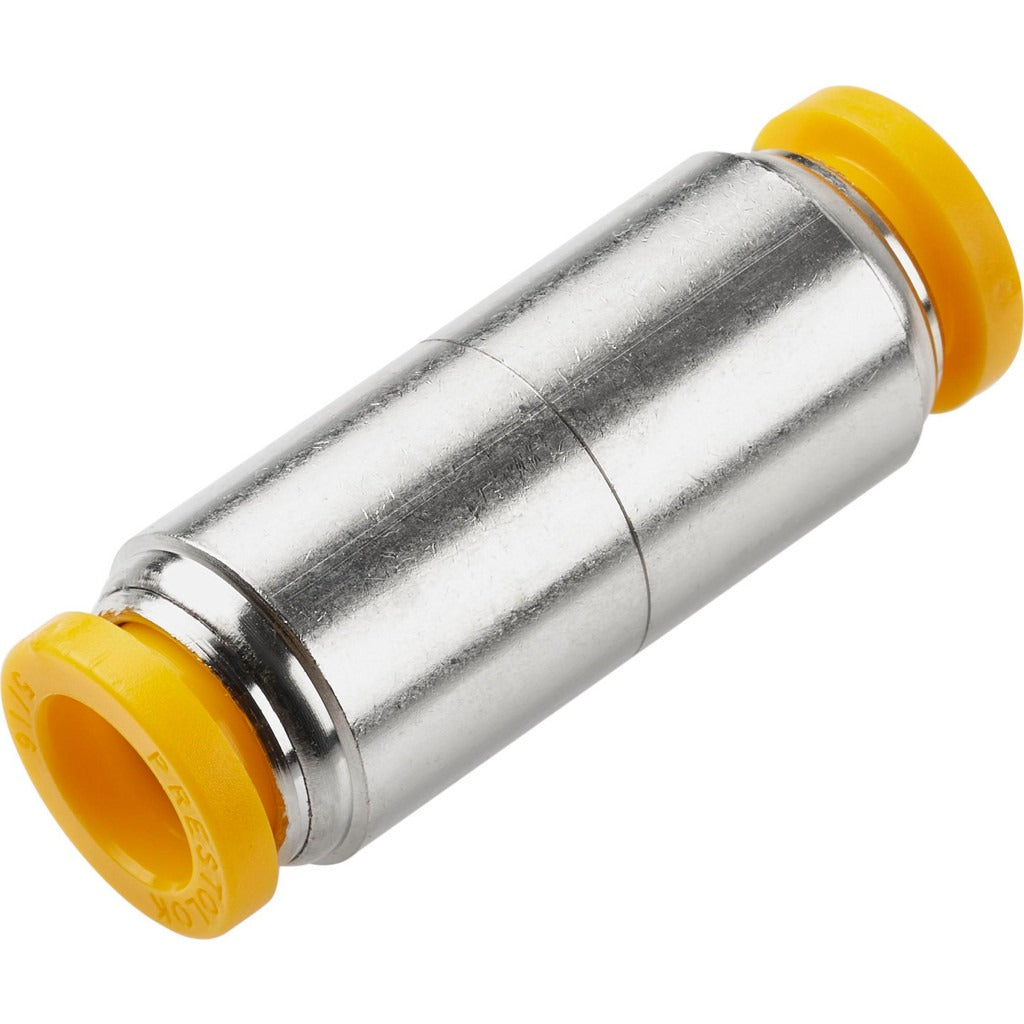

Parker 62PLP-6M Push-to-connect Union Straight Fitting

Product Description

The PARKER 62PLP-6M is a push-to-connect union straight tube fitting designed for tube-to-tube connections in pneumatic and fluid systems. Constructed from nickel-plated brass, it provides a rated maximum working pressure of 300 psi and an operating temperature range of 0 to 200 degrees F. The fitting accepts 6mm outside diameter tubing and allows fast, tool-free connections using the integrated yellow release button. It is silicone-free and meets the UL94 V-0 flame resistance standard. Technicians in HVAC, plumbing, and light industrial applications install this fitting where a straight inline union is required without threaded fittings or compression hardware.

This fitting is suited for residential and commercial applications involving 6mm OD tubing in pneumatic control lines, refrigeration sensing lines, and similar low-to-medium pressure tubing runs. The push-to-connect design speeds up installation and allows tube removal and reconnection without special tools, making it practical for service and repair scenarios where repeated access is expected.

Key Features

• Push-to-connect design accepts 6mm OD tubing with no tools required for insertion
• Yellow release button allows quick tube removal and reconnection
• Nickel-plated brass construction resists corrosion in moderate-humidity environments
• Rated to 300 psi maximum working pressure
• Silicone-free grease lubricant — compatible with systems sensitive to silicone contamination
• UL94 V-0 flame resistance rating on polymer components

Compatibility

Designed as an OEM-style push-to-connect union for inline tube-to-tube connections using 6mm outside diameter tubing in pneumatic, HVAC control, and light fluid handling systems.

Installation Notes

This fitting is typically installed by HVAC technicians, plumbers, or pneumatic system technicians. Before installation, shut off and depressurize the system completely. Ensure tubing ends are cut cleanly and squarely with no burrs, as irregular cuts can compromise the internal seal. Do not exceed the rated working pressure or temperature limits during system operation.
