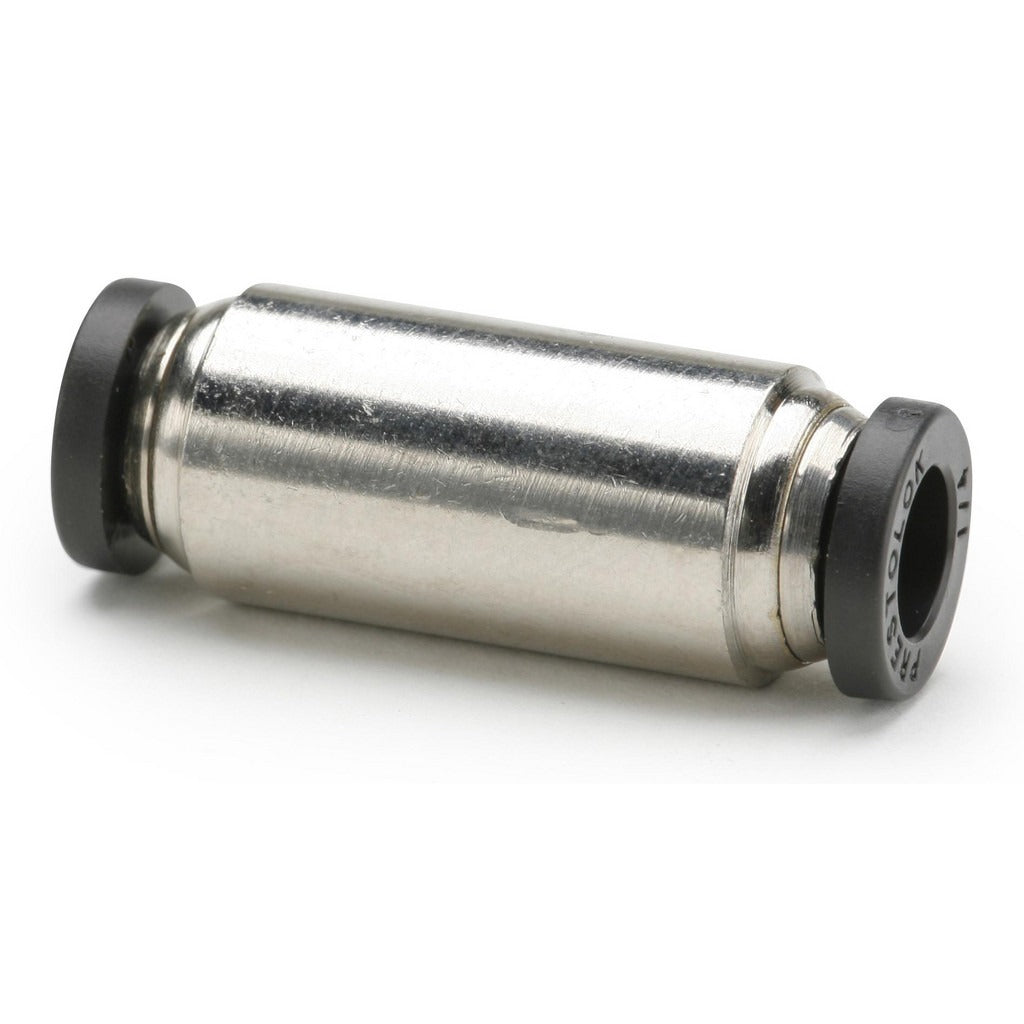

Parker 62PLP-5/32 Push-to-connect Union Tube Fitting

Product Description

The PARKER 62PLP-5/32 is a push-to-connect union tube fitting designed to join two lengths of tubing without tools or compression hardware. Built from nickel-plated brass with a nitrile o-ring, it maintains a rated working pressure of 300 psi across a temperature range of 0 degrees F to 200 degrees F. The push-to-connect mechanism allows technicians to make fast, secure tube-to-tube connections in pneumatic and fluid-transfer lines. The black actuator button is made from flame-resistant material compliant with the UL94 V-0 standard. At 1.41 inches in overall length and weighing under one pound, this fitting is well suited for tight routing runs in control panels, HVAC equipment, and similar applications.

This fitting is used in pneumatic control lines, instrument air circuits, and light-duty fluid systems found in HVAC, refrigeration, and industrial equipment. It accommodates 5/32-inch OD tubing on both ends in a straight union configuration. HVAC technicians and instrumentation mechanics typically install this fitting during new construction or service calls where quick tube reconnection is required without special crimping or flaring tools.

Key Features

• Push-to-connect design allows tool-free tube insertion and secure locking
• Nickel-plated brass body resists corrosion in pneumatic and light fluid service
• Rated to 300 psi maximum working pressure
• Operates across a temperature range of 0 degrees F to 200 degrees F
• Nitrile o-ring provides reliable sealing against air and compatible fluids
• UL94 V-0 compliant flame-resistant black release button

Compatibility

Designed as an OEM-style push-to-connect union fitting for pneumatic and fluid-transfer tubing with a 5/32-inch OD in HVAC, refrigeration, and industrial control applications.

Installation Notes

Installation is performed by licensed HVAC technicians, instrumentation mechanics, or qualified plumbers depending on the system. Before servicing, depressurize and isolate the tubing circuit completely. Ensure tubing ends are cut cleanly and squarely with a tube cutter and that the OD is free of burrs, scratches, or debris before insertion. To disconnect, press the release button fully while pulling the tube straight out.
