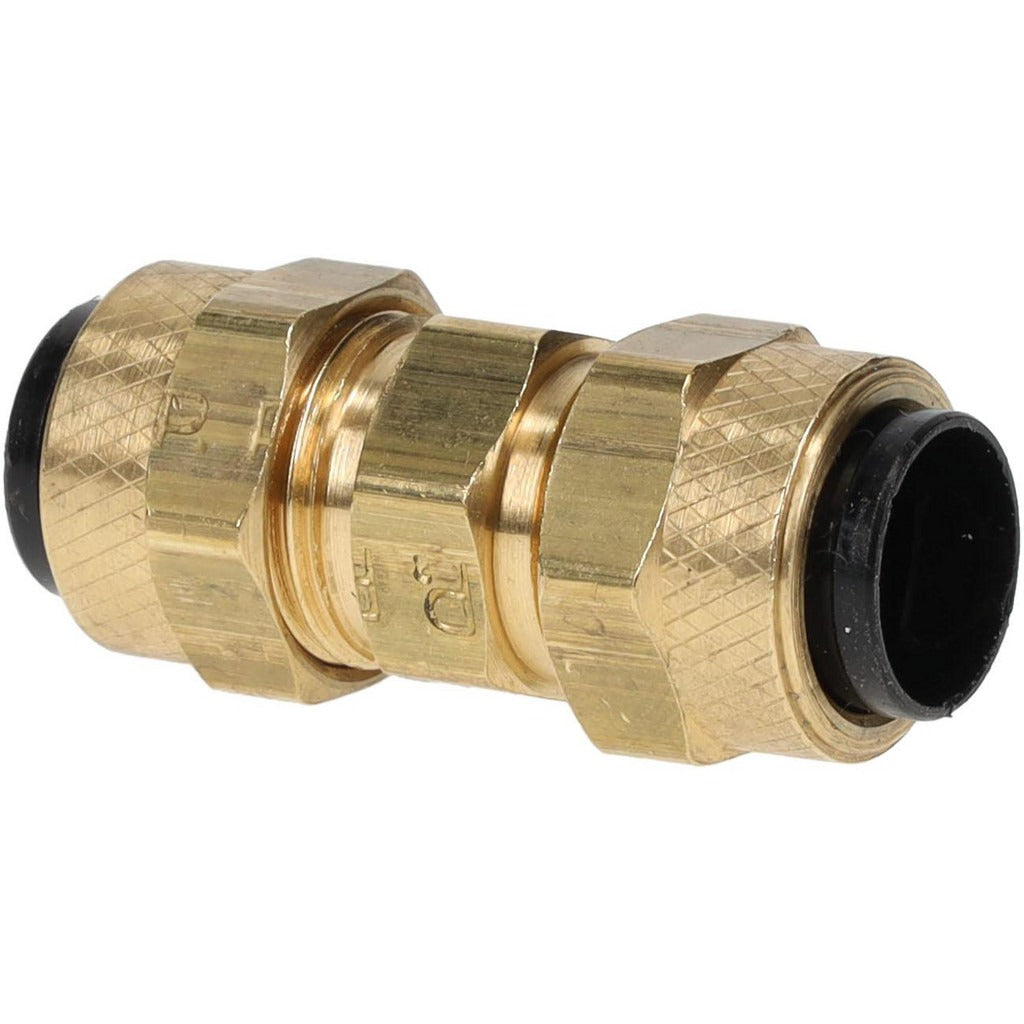

Parker 62P-6 Compression Tube Union 3/8 Inch Brass

Product Description

The PARKER 62P-6 is a brass compression tube union designed to join two lengths of tubing in a straight-line configuration using compression-style end connections on both sides. The fitting accepts 3/8-inch outside diameter tubing and is rated for a maximum working pressure of 150 psi and a maximum temperature of 150 degrees F, with a minimum rated temperature of 0 degrees F. This type of union is commonly installed in refrigeration, HVAC, plumbing, and instrumentation systems where a secure, removable tube connection is required without soldering or brazing. Licensed plumbers, HVAC technicians, and refrigeration mechanics are the typical installers.

The 62P-6 is suited for residential and light commercial applications where 3/8-inch OD tubing must be joined inline. Common use cases include fuel gas distribution lines, refrigerant-adjacent instrumentation tubing, water supply connections, and pneumatic control lines operating within the rated pressure and temperature envelope. Its all-brass construction makes it appropriate for use with copper, brass, and compatible plastic tubing types in dry or wet service environments.

Key Features

• Compression x Compression end connections — no soldering or brazing required for installation
• Fits 3/8-inch outside diameter tubing
• Rated to 150 psi maximum working pressure
• Rated temperature range: 0 degrees F to 150 degrees F
• Brass construction provides corrosion resistance in wet and dry service
• Straight union configuration for inline tube-to-tube connections

Compatibility

Designed as an OEM-style compression union for use with 3/8-inch outside diameter tubing in HVAC, plumbing, refrigeration, and instrumentation systems operating within the rated pressure and temperature limits.

Installation Notes

Installation is performed by licensed plumbers, HVAC technicians, or refrigeration mechanics. Before servicing any line, shut off the fluid or gas supply and relieve system pressure completely. Ensure tubing ends are cut square and free of burrs before seating into the compression fitting. Follow applicable local plumbing codes and manufacturer torque guidance — do not overtighten compression nuts, as this can deform the ferrule and cause leaks.
