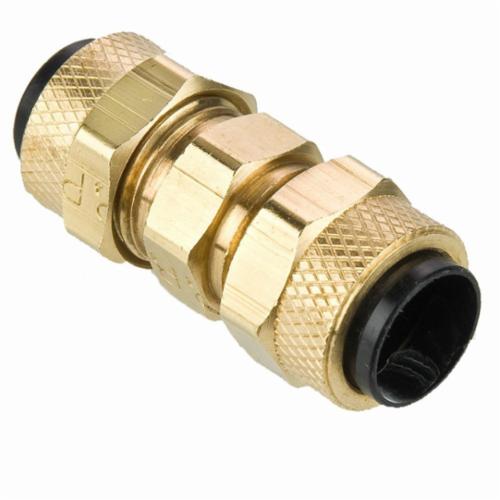

Parker 62P-6-4 Tube Union Reducer 3/8 x 1/4 in Compression Brass

Product Description

The Parker® 62P-6-4 Tube Union Reducer is a compression fitting designed for quick installation. This fitting features a pre-assembled body, nut, and sleeve. The acetal copolymer sleeve is engineered to withstand stress from compression and resist UV damage. It also maintains stability under various conditions. The fitting allows for easy assembly and disassembly.

• Compression fitting for fast setup.
• Compatible with several types of thermoplastic tubing.
• Resistant to UV and dimensional changes.

Product Highlights

The Parker® Tube Union Reducer is ideal for connecting different sizes of tubing efficiently. Its design prevents twisting and ensures a secure connection.

Product Information

Standard Information

• Brand: Parker®
• Manufacturer: Parker Hannifin

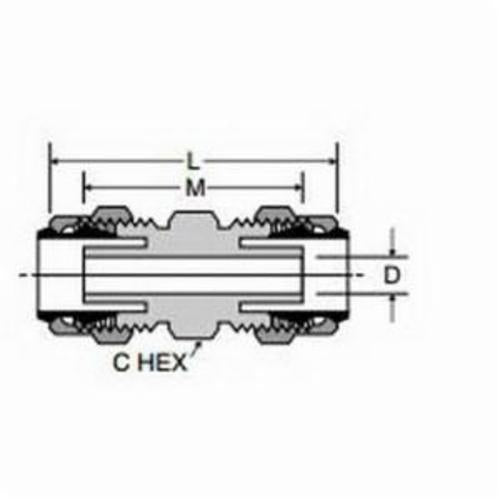

Technical Specifications

• Fitting/Connector Type: Union/Reducer
• Nominal Size: 3/8 x 1/4 in
• Hex Size: 1/2 in
• Length: 1.22 in
• Material: Brass
• Pressure Rating: 150 psi
• Temperature Rating: 0 to 150 deg F
• Series: 62P
• End Style: Compression
