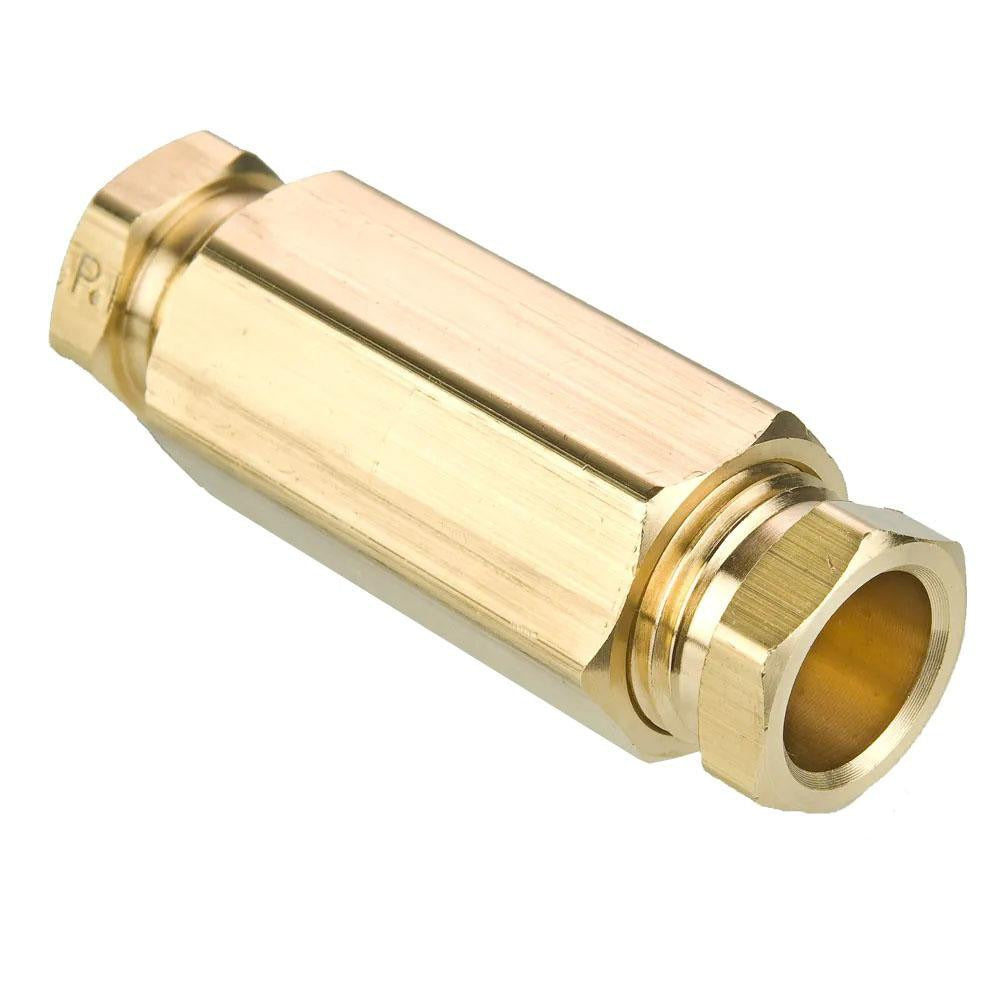

Parker 62HD-6 Brass Compression Tube Union 1500 Psi

Product Description

The PARKER 62HD-6 is a brass compression tube union designed to join two compression-end tube lines in a single inline fitting. It accepts compression connections on both ends, creating a leak-resistant joint without soldering or special tooling. Rated to 1500 psi maximum working pressure, this union is built for demanding fluid and gas line applications. The all-brass construction resists corrosion and holds up across a wide temperature range, from -65 degrees F to 250 degrees F. Plumbers, HVAC technicians, and industrial pipefitters install this type of fitting wherever a removable, pressure-rated tube union is required.

The 62HD-6 is suited for residential and light commercial plumbing, refrigeration tubing, instrumentation lines, and pneumatic systems that call for a compression-style union. Its symmetric compression x compression end configuration allows it to connect two tube runs of matching size in a straight inline arrangement. This fitting is commonly installed in tight spaces where soldered or flared connections are impractical or where future serviceability is a priority.

Key Features

• Compression x compression end connections on both ends for tool-accessible, no-solder installation
• 1500 psi maximum working pressure rating for high-demand fluid and gas line service
• All-brass construction for corrosion resistance and durability
• Wide operating temperature range: -65 degrees F to 250 degrees F
• Overall length of 2.187 inches for compact inline fitment
• Single-piece union design allows future disassembly without cutting the line

Compatibility

Designed as an OEM-style replacement or new-installation compression tube union for systems requiring a compression x compression brass union fitting at the specified pressure and temperature ratings.

Installation Notes

Installation is performed by licensed plumbers or qualified HVAC and refrigeration technicians. Depressurize and isolate the tube line completely before removing any existing fitting or installing this union. Ensure tube ends are cut square, deburred, and fully seated against the fitting body before tightening compression nuts. Follow applicable IPC or system-specific codes for pressure testing after installation.
