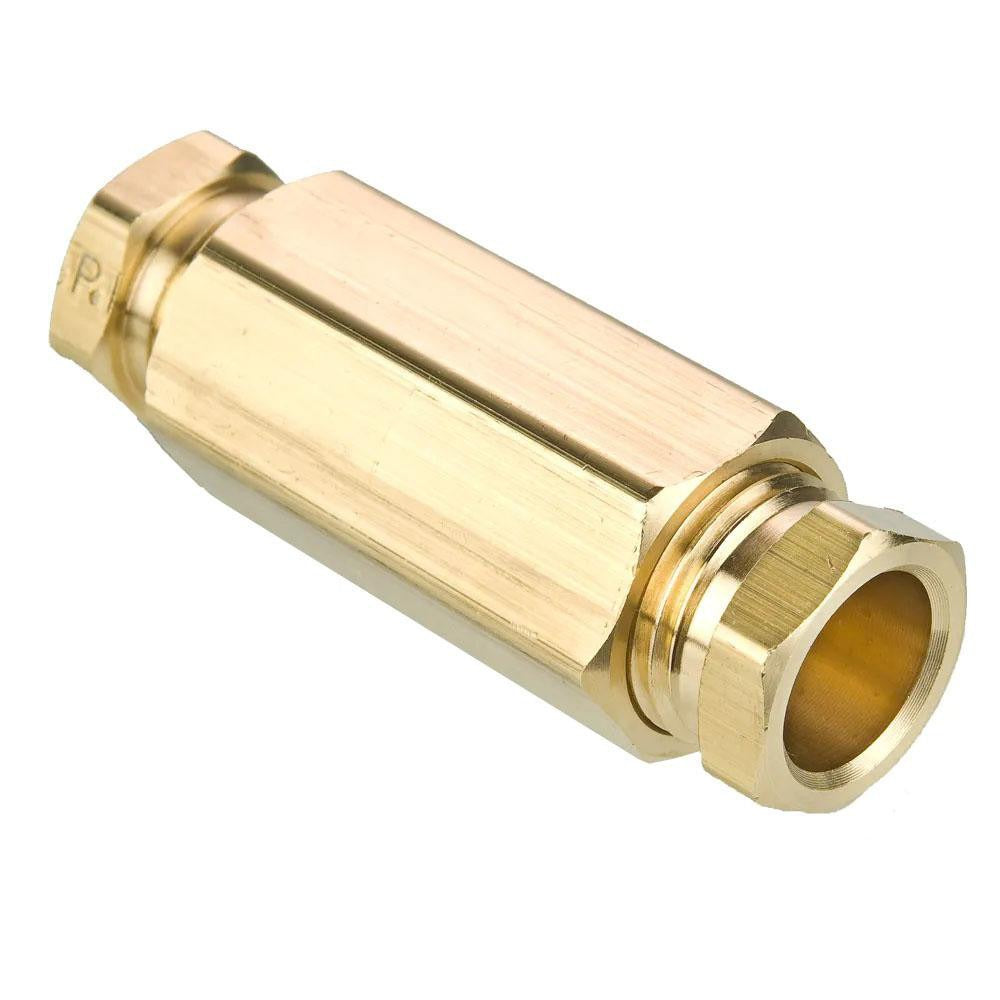

Parker 62HD-10 Brass Compression Tube Union 1000 Psi

Product Description

The PARKER 62HD-10 is a brass compression tube union designed to join two compression-end tube lines in a single inline connection. It accepts compression fittings on both ends, creating a leak-resistant seal without soldering or special tooling. Rated to 1000 psi maximum working pressure, this union is built for demanding fluid and gas distribution systems. The all-brass construction resists corrosion and holds up across a wide temperature range, from -65 degrees F to 250 degrees F. Licensed plumbers, HVAC technicians, and industrial pipe fitters are the typical installers for this type of fitting.

This compression union fits inline tubing runs where two tube ends need to be coupled and the joint must remain serviceable. It is suited for residential and light commercial plumbing, refrigeration lines, pneumatic distribution, and hydraulic instrument tubing where compression-style end connections are specified. Its pressure rating makes it appropriate for higher-demand applications beyond standard household water supply work.

Key Features

• Compression x compression end connections allow tool-free, solder-free assembly
• 1000 psi maximum working pressure rating for demanding system use
• Brass construction provides corrosion resistance in wet and humid environments
• Wide temperature range: -65 degrees F minimum to 250 degrees F maximum
• Inline union design keeps the joint accessible for future service or disassembly

Compatibility

Designed as an OEM-style compression tube union compatible with standard compression tubing systems requiring a straight inline union connection.

Installation Notes

Installation is typically performed by a licensed plumber or qualified HVAC technician. Shut off system pressure and bleed the line before disassembling or installing compression fittings. Hand-tighten the compression nut first, then use a wrench for a final snug turn — avoid overtightening, which can distort the ferrule and cause leaks. Verify that tubing ends are cut square and deburred before seating into the fitting body.
