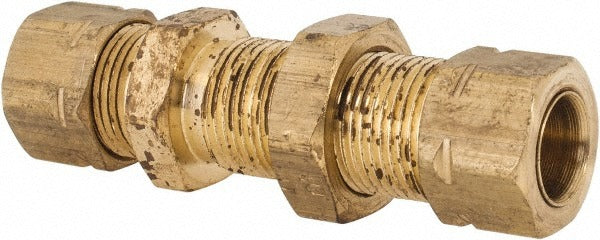

Parker 62CABH-6 Brass Compression Bulkhead Union 1000 Psi

Product Description

The PARKER 62CABH-6 is a brass compression bulkhead union designed to route tubing through a panel, wall, or bulkhead while maintaining a secure, leak-resistant connection on both sides. The fitting accepts compression connections on both ends, allowing technicians to complete the installation without soldering or threading. Rated to 1000 psi maximum working pressure and a maximum temperature of 250 degrees F, this fitting is built for demanding hydraulic, pneumatic, and fluid-handling applications. The brass body provides good corrosion resistance across a wide service temperature range, down to -65 degrees F. Licensed plumbers, HVAC technicians, and industrial maintenance professionals are the primary installers.

This bulkhead union fits applications where tubing must pass cleanly through a panel or enclosure wall with secure compression fittings on both the near and far sides. Common use cases include HVAC equipment panels, refrigeration line sets routed through cabinetry, hydraulic control enclosures, and pneumatic distribution systems. The compression-by-compression end configuration supports quick, repeatable connections in tight or hard-to-reach spaces without requiring special tooling beyond a standard tube cutter and wrench.

Key Features

• Compression x Compression end connections on both sides for tool-accessible, no-solder installation
• 1000 psi maximum working pressure suits a wide range of hydraulic and pneumatic systems
• Brass construction provides corrosion resistance and durability across a broad temperature range
• Rated from -65 degrees F to 250 degrees F for use in both low-temperature and elevated-heat environments
• Bulkhead design allows clean panel or wall penetration with secure connections on both sides
• NPTF thread standard where applicable ensures pressure-tight engagement

Compatibility

Designed as an OEM-style compression bulkhead union fitting for use in hydraulic, pneumatic, HVAC, and fluid-handling systems requiring panel penetration with compression-type tube connections.

Installation Notes

Installation should be performed by a qualified tradesperson familiar with compression fitting assembly and applicable system pressure ratings. Before installation, shut off and depressurize the system completely and verify the tubing is cut cleanly and deburred. Use an appropriate wrench to tighten the compression nut without over-torquing, which can deform the ferrule and cause leaks. Follow all applicable local codes and manufacturer guidelines for the system type being serviced.
