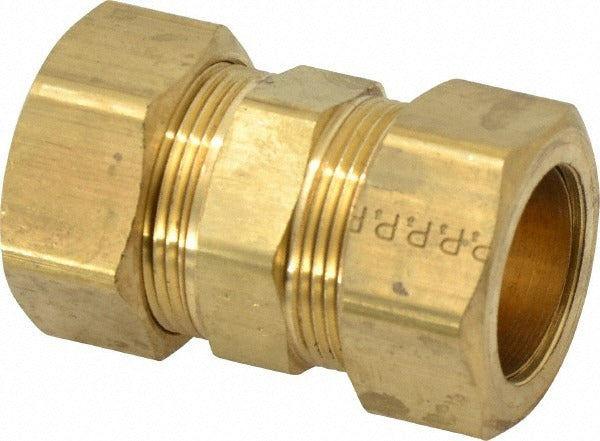

Parker 62C-14 Compression Tube Union 1-1/8-18 Brass

Product Description

The PARKER 62C-14 is a brass compression tube union designed to join two compression-end tube lines in a single inline fitting. It accepts 1-1/8-18 inch thread connections on both ends and is rated for a maximum working pressure of 75 psi and temperatures ranging from -65 degrees F to 250 degrees F. Constructed from brass and manufactured to SAE J-512 standards, this union provides a reliable, leak-resistant connection in hydraulic, pneumatic, and fluid transfer line applications. It is typically installed by licensed plumbers, HVAC technicians, and fluid system mechanics working on tubing assemblies that require a straight union joint.

The 62C-14 is suited for use in residential and light commercial systems where compression-style tube fittings are specified. Common applications include refrigeration tubing, hydraulic control lines, and general-purpose fluid handling where brass construction and SAE J-512 conformance are required. The compression-by-compression end configuration allows for tool-assisted, no-solder installation in tight service environments where a repeatable, pressure-rated seal is needed.

Key Features

• Brass construction for corrosion resistance in fluid and refrigerant service environments
• Compression x Compression end connections on both sides for a no-solder inline union
• 1-1/8-18 inch thread size on each end
• Rated to 75 psi maximum working pressure
• Operating temperature range: -65 degrees F to 250 degrees F
• Manufactured to SAE J-512 standard for compression tube fittings

Compatibility

Designed as an OEM-style compression tube union for hydraulic, pneumatic, and fluid transfer tubing systems requiring SAE J-512 compliant compression fittings with a 1-1/8-18 inch thread size.

Installation Notes

Installation should be performed by a qualified plumber, HVAC technician, or fluid systems mechanic. Depressurize and isolate the line completely before disassembling any existing fittings or installing this union. Use appropriate tube cutters and deburring tools to prepare tubing ends before seating the compression ferrule. Do not overtighten compression fittings; follow the fitting manufacturer's turn-past-finger-tight guidance and applicable system codes.
