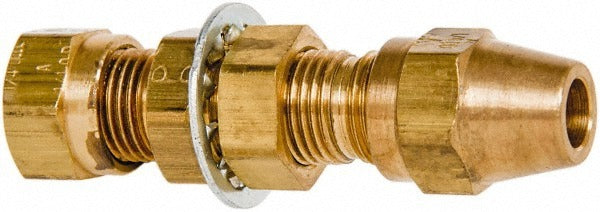

Parker 62ANBH-6 Brass Compression Tube Union 150 Psi

Product Description

The PARKER 62ANBH-6 is a brass compression tube union designed to join two compression-end tube lines in a single inline fitting. It provides a leak-resistant, tool-assisted connection without soldering or threading, making it a common choice for plumbing, instrumentation, and fluid-handling installations. The fitting is rated to 150 psi maximum working pressure and handles temperatures from -40 degrees F to 200 degrees F. The brass construction offers corrosion resistance suitable for water, air, and a range of compatible fluid media. Licensed plumbers and instrumentation technicians are the primary installers of this fitting type.

This union fitting is used in residential and light commercial plumbing systems, pneumatic control lines, and instrumentation tubing runs where a straight inline tube-to-tube connection is required. Both ends accept compression-style tube connections, allowing field assembly without specialized crimping or brazing equipment. It is suited for copper and compatible soft-metal tubing applications where a removable, re-serviceable joint is desired.

Key Features

• Compression x compression end connections for tool-assisted, braze-free assembly
• Brass construction for corrosion resistance in water and air service
• 150 psi maximum working pressure rating
• Rated from -40 degrees F to 200 degrees F operating temperature range
• 0.217 inch inside diameter bore
• Inline union configuration allows tube-to-tube joining and service disconnection

Compatibility

Designed as an OEM-style replacement or new-installation compression tube union for plumbing and instrumentation systems using compression-end fittings on compatible tubing sizes.

Installation Notes

Installation is typically performed by a licensed plumber or instrumentation technician. Shut off and depressurize the fluid or pneumatic line fully before disassembling or installing any compression fitting. Ensure tubing ends are cut cleanly and deburred before seating into the compression ferrule to achieve a proper seal. Follow applicable plumbing codes, including IPC requirements, for pressure testing after installation.
