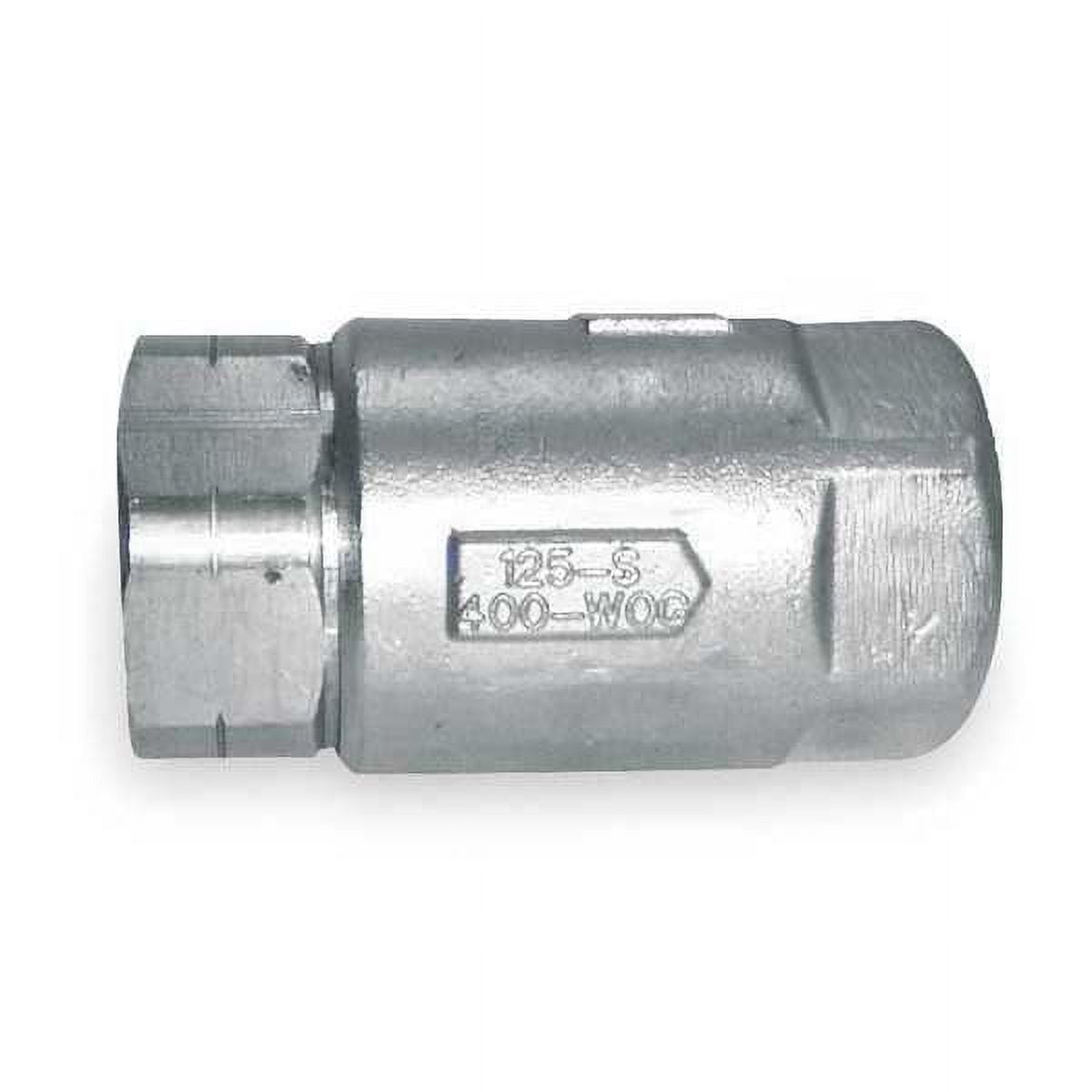

PARKER 6210501 Ball Cone Spring Check Valve 1 Inch FNPT

Product Description

The PARKER 6210501 is a ball cone spring check valve suitable for inline installation. This valve features a CF8M stainless steel body mixed with RPTFE for durability. It connects via female NPT connections sized at 1 inch, making it ideal for use with compressed air and steam. The design enables horizontal or vertical mounting.

• Constructed with CF8M stainless steel.
• Features female NPT connections.
• Suitable for compressed air and steam applications.

Product Highlights

The valve's EPDM seal and stainless steel spring ensure reliable operation in various conditions.

Product Information

Standard Information

• Valve Body Style: Inline
• Valve Series: 62

Technical Specifications

• Item: Ball Cone Spring Check Valve
• Connection Type: FNPT
• Cracking Pressure: 0.5 psi
• Max. Steam Pressure: 125 psi
• Maximum Temperature: 353 degrees Fahrenheit
• Max. Water Pressure: 400 psi
• Flow Rate: 6 GPM
• Spring Material: Stainless Steel
