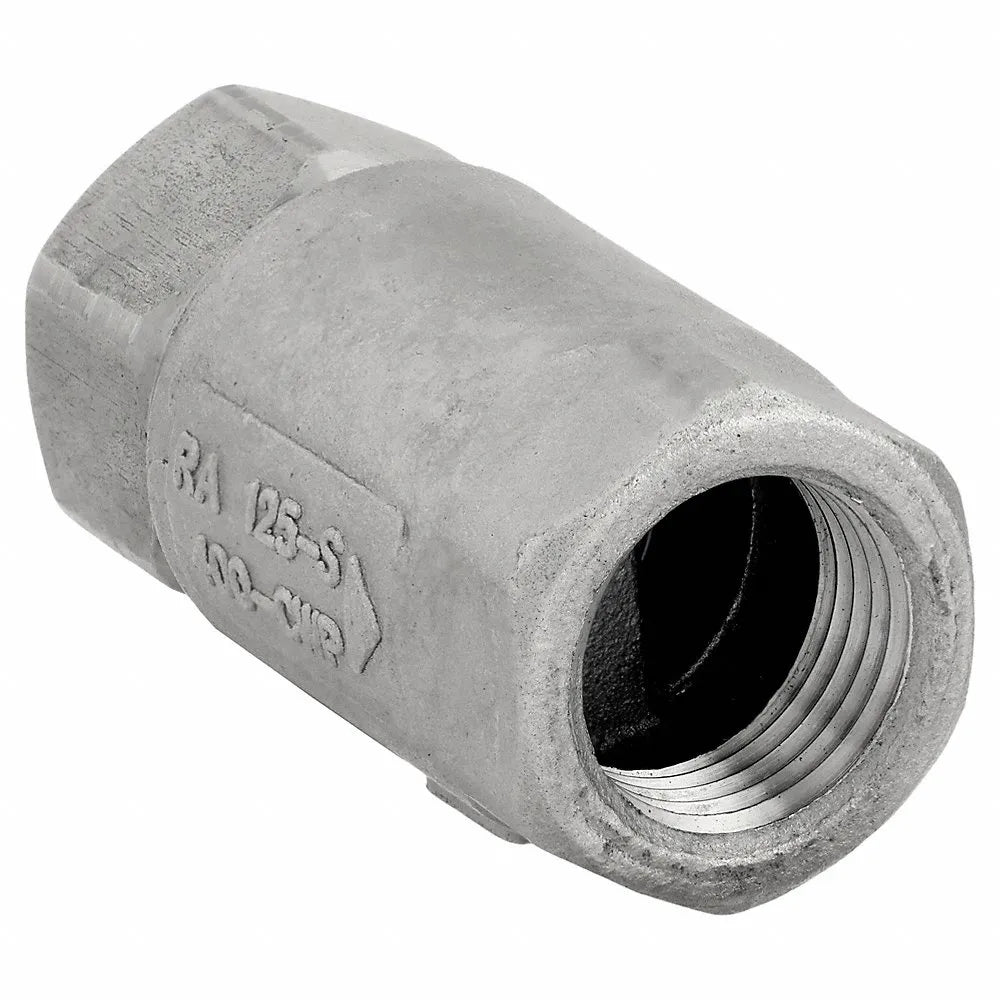

PARKER 6210301 Ball Cone Spring Check Valve, 1/2 Inch

Product Description

The PARKER 6210301 is a ball cone spring check valve designed for inline applications. It features a CF8M stainless steel body and RPTFE ball material. This valve is suitable for use with compressed air and steam, and it can be mounted in either horizontal or vertical orientations.

• Connection Type: FNPT x FNPT
• Body Material: CF8M Stainless Steel
• Maximum Temperature: 353°F

Product Highlights

The valve's design includes a stainless steel spring and an EPDM seal, making it ideal for various applications.

Product Information

Standard Information

• Item: Ball Cone Spring Check Valve
• Color: Silver

Technical Specifications

• Cracking Pressure: 0.5 psi
• Max. Steam Pressure: 125 psi
• Max. Water Pressure: 400 psi
• Overall Height: 1 1/8 inches
• Overall Length: 2.3125 inches
• Mounting Position: Horizontal/Vertical
• Ball Material: RPTFE
• Check Mechanism: Ball
