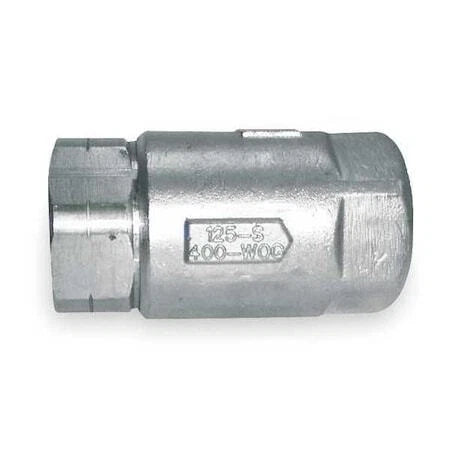

PARKER 6210201 Ball Cone Spring Check Valve 3/8 FNPT

Product Description

The PARKER 6210201 is a ball cone spring check valve designed for inline applications. This valve features a stainless steel body, ensuring durability and reliability for various uses. It is ideal for compressed air and steam systems, regulating unidirectional flow with effective precision.

• Constructed with CF8M stainless steel body and RPTFE ball.
• Features female NPT connections on both sides with a size of 3/8.
• Operates effectively within a media temperature range from 33°F to 350°F.

Product Highlights

Product Information

Standard Information

• Brand: PARKER
• MPN: 6210201

Technical Specifications

• Type: Ball Cone Spring Check Valve
• Connection Type: FNPT
• Cracking Pressure: 0.5 psi
• Grade: Grade 316
• Length: 2 1/8 inches
• Max. Steam Pressure: 125 psi
• Max. Water Pressure: 400 psi
• Overall Height: 1 1/8 inches
• Seal Material: EPDM
• Seat Material: RPTFE
• Ball Material: RPTFE
• Body Material: CF8M Stainless Steel
• Valve Mechanism: Ball
• Flow Rate: 1.21 GPM
