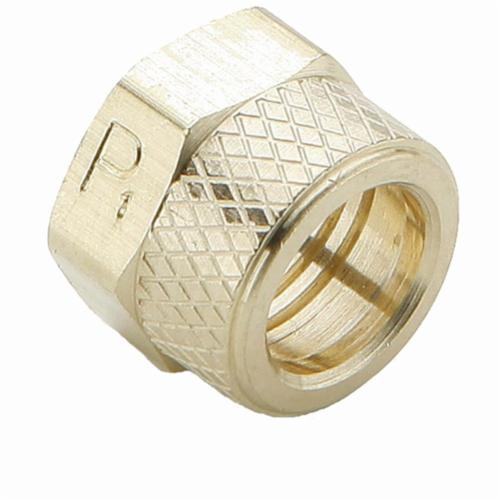

Parker 61PN-8 Compression Nut, 1/2 in x 11/16-20, Tube x Straight Thread

Product Description

The Parker Compression Nut, model 61PN-8, is designed for ease of installation and durability. This fitting features a pre-assembled body, nut, and sleeve, ready to be used right out of the package. The acetal copolymer sleeve helps prevent issues like creeping and stress from compression. This material also offers resistance to UV rays, ensuring long-lasting performance. As the nut tightens, it rotates around the sleeve, reducing the risk of twisting the plastic tubing. The fitting can be repeatedly assembled and disassembled, providing flexibility for users.

• Designed for a range of thermoplastic tubing, including polyethylene and nylon.
• Features a robust black acetal copolymer sleeve for better stability.
• Brass material makes it suitable for soft metal tubing.

Product Highlights

The Parker Compression Nut is compatible with various tubing materials and can handle pressures up to 150 psi, making it versatile for different applications.

Product Information

Standard Information

• Brand: Parker
• Part Number: 261328

Technical Specifications

• End Style: Tube x Straight Thread
• Fitting/Connector Type: Nut
• Hex Size: 3/4 in

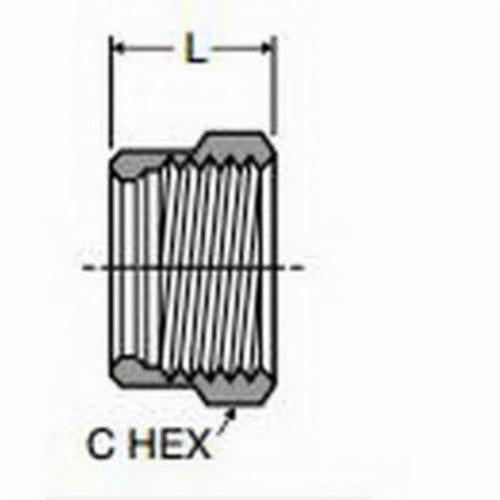

• Length: 0.44 in
• Material: Brass
• Nominal Size: 1/2 in x 11/16-20
• Pressure Rating: 150 psi
• Series: 61PN
• Temperature Rating: 0 to 150 deg F
