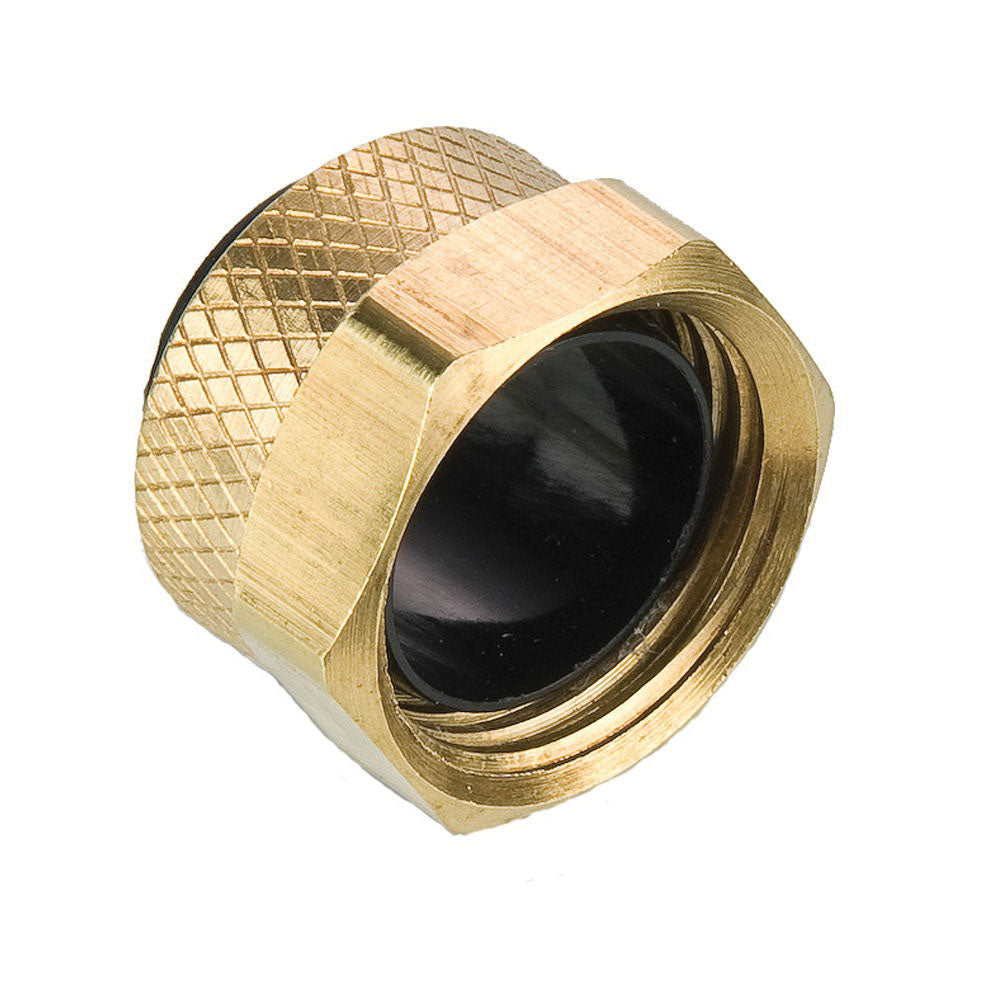

Parker 61P-8 Nut and Sleeve Assembly 1/2 in Nominal Compression End Style

Product Description

Parker's 61P-8 nut and sleeve assembly offers a simple solution for reliable connections in piping systems. The product features a pre-assembled design that allows for quick installation right out of the box. The acetal copolymer material of the sleeve resists deformation and stress under pressure, making it suitable for demanding applications. The assembly's compression end style ensures a secure fit, while the nut rotates freely to prevent twisting of the tubing.

• Suitable for thermoplastic tubing installations
• Pre-assembled for ease of use
• Resistant to UV damage and high pressure

Product Highlights

Designed for effective and efficient piping solutions, Parker's fittings are easy to install and maintain.

Product Information

Standard Information

• Brand: Parker
• Manufacturer: Parker Hannifin

Technical Specifications

• End Style: Compression
• Fitting/Connector Type: Nut
• Hex Size: 3/4 in
• Length: 0.44 in
• Nominal Size: 1/2 in
• Pressure Rating: 150 psi
• Temperature Rating: 0 to 150 deg F
• Series: 61P
