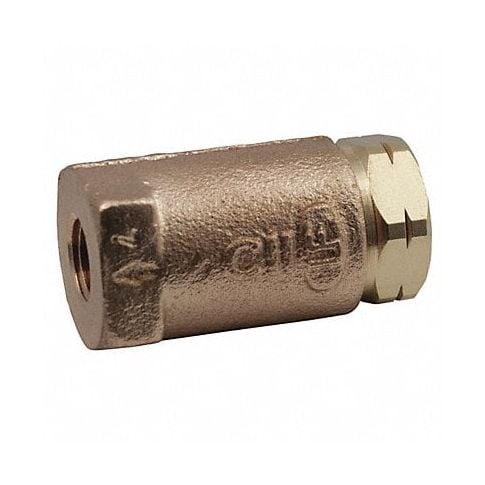

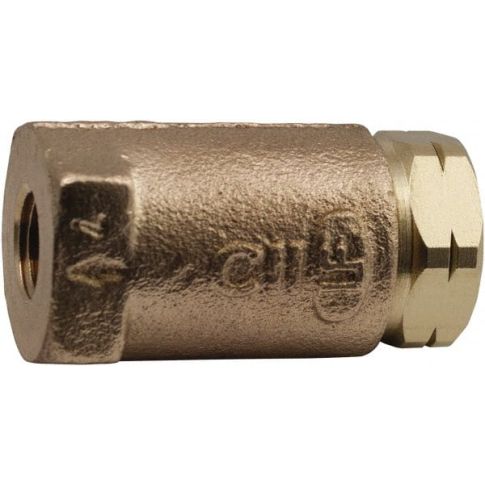

PARKER 61LF10301 Bronze Check Valve - 1/2 FNPT

Product Description

The PARKER 61LF10301 is a bronze check valve specifically designed for backflow prevention in plumbing systems. It features a half-inch female NPT connection. The valve is made from lead-free bronze for resistance to corrosion. It includes a stainless steel spring and a reinforced PTFE seal for reliable shutoff. This in-line valve can be mounted both horizontally and vertically, making it versatile for various applications.

• 1/2 inch female NPT connection
• Constructed from lead-free bronze
• Flexible mounting options: horizontal and vertical

Product Highlights

Ideal for applications such as potable water systems, irrigation, and fire sprinklers, this valve ensures continuous flow and prevents reverse flow.

Product Information

Standard Information

• Brand: PARKER
• MPN: 61LF10301

Technical Specifications

• Valve Type: Check Valve
• Body Material: Bronze
• Connection Type: FNPT
• Pipe Size: 1/2 inch
• Cracking Pressure: 0.5 psi
• Maximum Water Pressure: 400 psi
• Maximum Temperature: 350 °F
• Seal Material: EPDM
• Spring Material: Stainless Steel
• Flow Rate: 1.4 gpm
• Mounting Orientation: Horizontal, Vertical
• Overall Length: 2.312 inches
• Width: 1.25 inches
• Height: 1.25 inches
