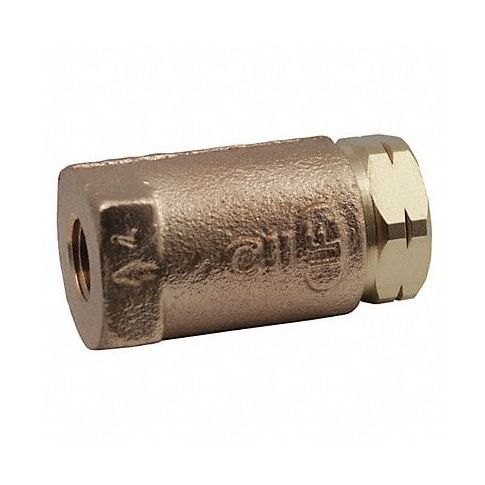

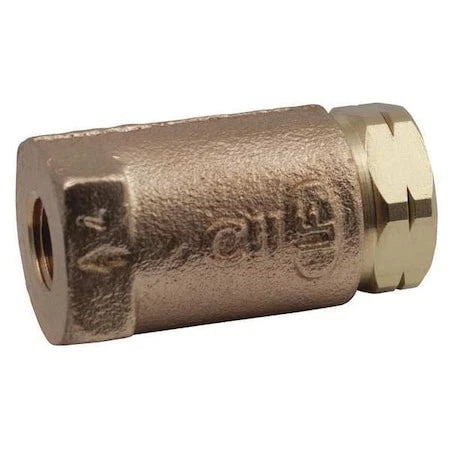

Parker 61LF10201 Bronze Ball Cone Check Valve

Product Description

The Parker 61LF10201 is a bronze ball cone check valve that prevents backflow in various applications. It features a straight-through design to reduce flow resistance and is suitable for liquid media. The valve is certified for potable water applications, ensuring safe usage in drinking water systems.

• Material: Bronze with EPDM seal
• Connection Type: Female NPT on both sides
• Mounting Options: Horizontal or vertical orientation

Product Highlights

This valve allows one-way flow and is ideal for installation in three-eighths-inch pipe systems.

Product Information

Standard Information

• Brand: Parker
• MPN: 61LF10201

Technical Specifications

• Body Material: Bronze
• Pipe Size: 3/8 inches
• Connection Type: FNPT x FNPT
• Cracking Pressure: 0.5 psi
• Max Water Pressure: 400 psi
• Max Steam Pressure: 125 psi
• Max Temperature: 350 degrees Fahrenheit
• Min Temperature: 33 degrees Fahrenheit
• Flow Rate: 1.21 gallons per minute
