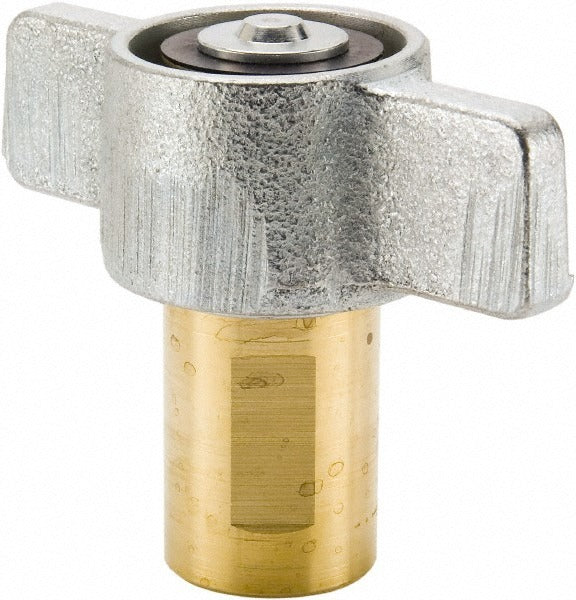

Parker 6125-20 Hydraulic Wing Nut Coupler 1-1/4 in 2750 Psi

Product Description

The PARKER 6125-20 is a straight hydraulic hose wing nut coupler designed for high-pressure fluid transfer applications. Machined from brass with a 1-1/4 inch body diameter and a 1-1/4 inch NPTF threaded connection, this Series 6100 coupler delivers a maximum working pressure of 2,750 psi. The wing nut design allows for hand-tightened, tool-free connection and disconnection under service conditions, making it practical for field use. It is rated for temperatures from -40 degrees F to 250 degrees F, giving it a broad service range across both cold-weather and high-heat environments. Hydraulic technicians and equipment mechanics are the primary installers.

This coupler is suited for mobile and stationary hydraulic systems in demanding work environments. Parker lists compatible applications as dump trailers, engine test stands, oil field equipment, and submersible pumps. The NPTF thread form creates a pressure-tight mechanical seal on assembly, which is a common requirement in these applications where leak-free connections are critical. The straight body geometry supports inline plumbing configurations without directional offset.

Key Features

• Brass construction for corrosion resistance in hydraulic fluid and oil service
• 1-1/4 inch NPTF threaded connection for pressure-tight, dryseal thread engagement
• 2,750 psi maximum working pressure for demanding hydraulic circuits
• Wing nut design enables hand-tightened field connections without additional tooling
• Operating temperature range of -40 degrees F to 250 degrees F
• Straight body shape supports direct inline plumbing configurations

Compatibility

Designed for use with dump trailers, engine test stands, oil field equipment, and submersible pump hydraulic systems requiring a 1-1/4 inch NPTF wing nut coupler rated to 2,750 psi.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Before servicing any hydraulic connection, relieve all system pressure and verify the circuit is fully depressurized. NPTF threads require correct thread engagement to achieve the dryseal fit — do not cross-thread or overtighten. Inspect the mating port threads and sealing surfaces for damage before assembly.
