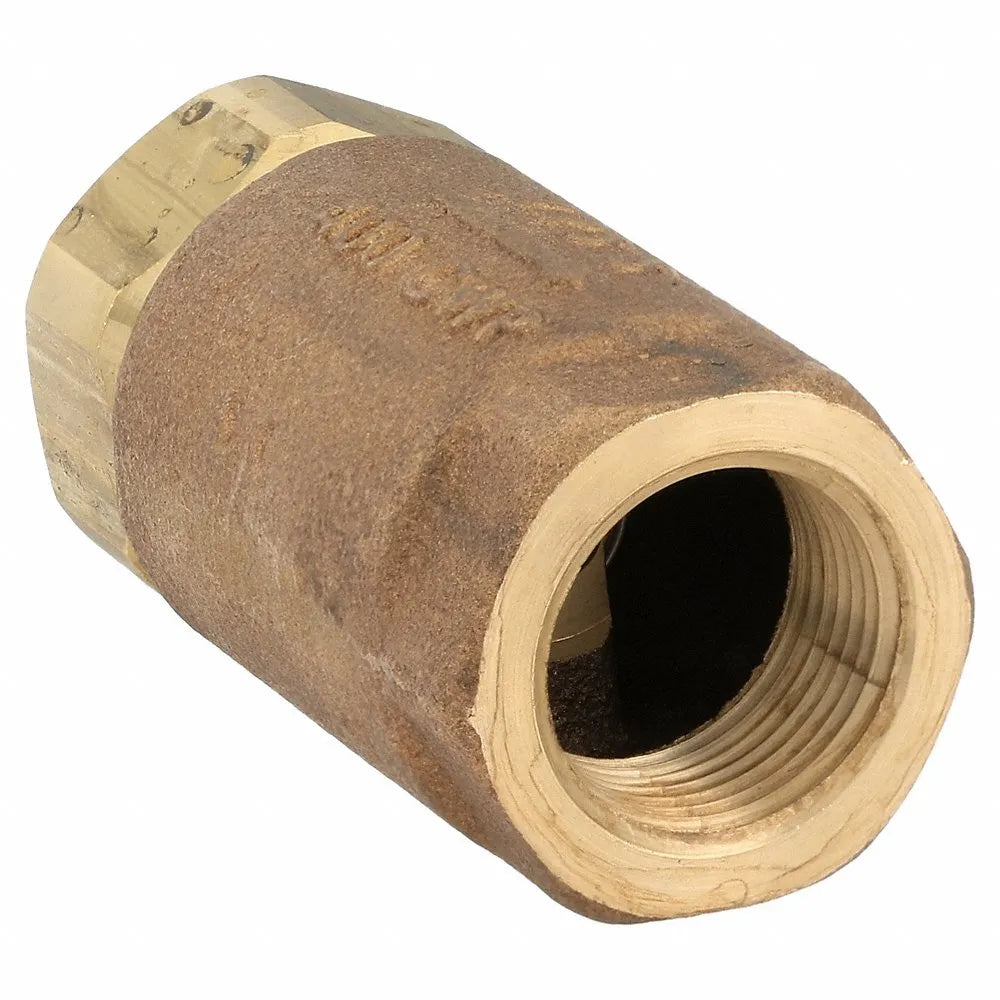

PARKER 6110501 Ball Cone Spring Check Valve Bronze 3 Inch

Product Description

The PARKER 6110501 is a ball cone spring check valve with a bronze body. It controls fluid flow, allowing it to move in one direction while preventing reverse flow. This valve is suitable for steam applications and can be installed in both horizontal and vertical positions. It is ideal for use in oil and gas, chemical processing, and HVAC industries.

• Ball check mechanism for reliable one-way fluid flow
• Bronze construction provides corrosion resistance
• Stainless steel spring ensures durability

Product Highlights

This product is designed for various applications, including central heating water systems.

Product Information

Standard Information

• Item: Ball Cone Spring Check Valve
• Body Style: Inline

Technical Specifications

• Color: Bronze
• Connection Type: FNPT
• Cracking Pressure: 0.5 psi
• Design: Single
• Height: 133.35 mm
• Length: 3.5 inches
• Max. Steam Pressure: 125 psi
• Max. Temperature: 353°F
• Max. Water Pressure: 400 psi
• Min. Temperature: 33°F
• Mounting Position: Horizontal/Vertical
• Seat Material: RPTFE
• Series: 61 Series Check Valves
• Size: 3 inches
• Spring Material: Stainless Steel
• Ball Material: RPTFE
• Check Mechanism: Ball
• Flow Rate: 265 GPM
• Operating Temperature Range: 33°F to 406°F
