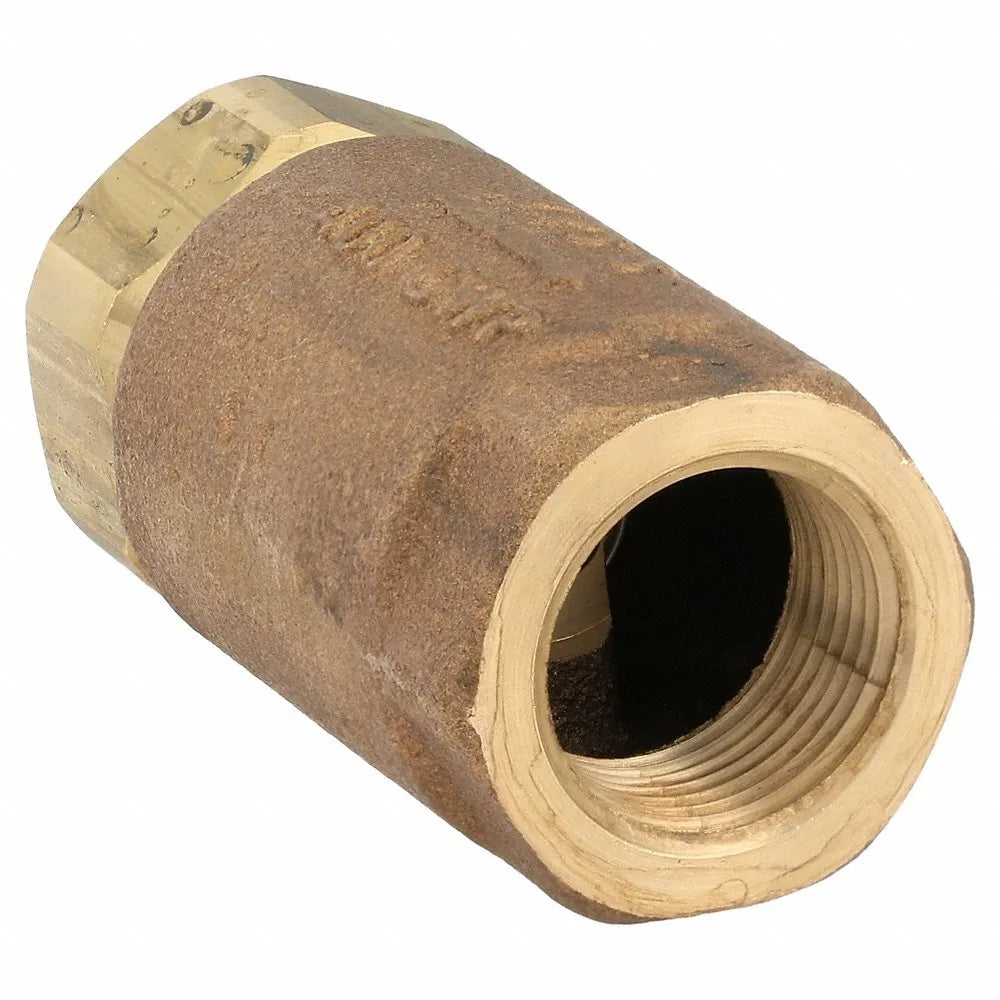

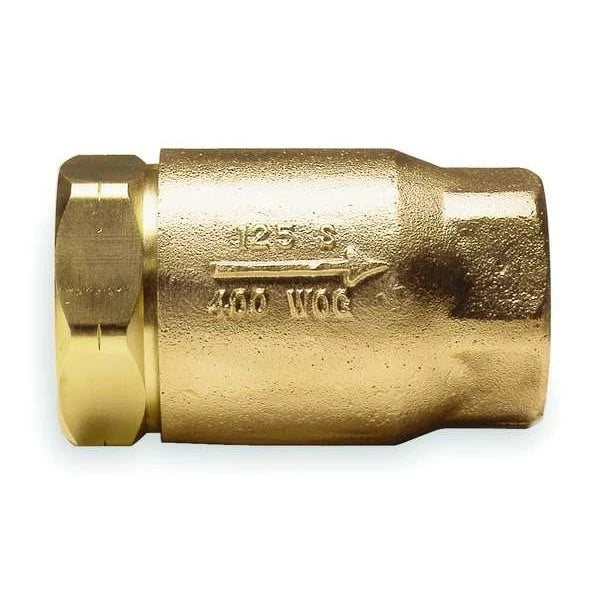

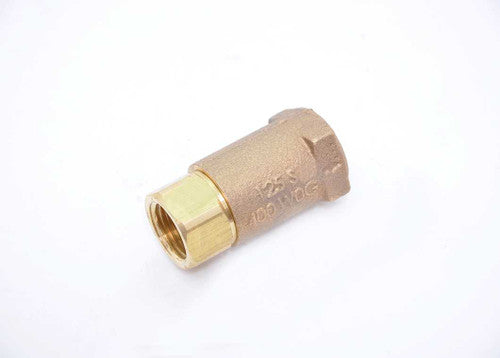

PARKER 6110401 Bronze Ball Cone Spring Check Valve

Product Description

The PARKER 6110401 is a bronze ball cone spring check valve that allows fluid flow in one direction while preventing backflow. The valve features female NPT threaded connections and is designed for both horizontal and vertical installation. It includes a stainless steel spring and RPTFE ball, making it suitable for various applications such as steam and water systems.

• Body material is bronze for optimal corrosion resistance.
• Spring-loaded check mechanism ensures reliable sealing.
• Designed for multiple mounting orientations.

Product Highlights

The PARKER 6110401 check valve is essential for controlling the flow of liquids and gases in plumbing and HVAC systems.

Product Information

Standard Information

• Item: Ball Cone Spring Check Valve
• Body Style: Inline

Technical Specifications

• Body Material: Bronze
• Connection Type: FNPT x FNPT
• Cracking Pressure: 0.5 psi
• Pipe Size: Three-Quarter Inch
• Mounting Orientation: Horizontal, Vertical
• Seal Material: EPDM
• Max. Water Pressure: 400 psi
• Max. Steam Pressure: 125 psi
• Operating Temperature: 33°F to 406°F
