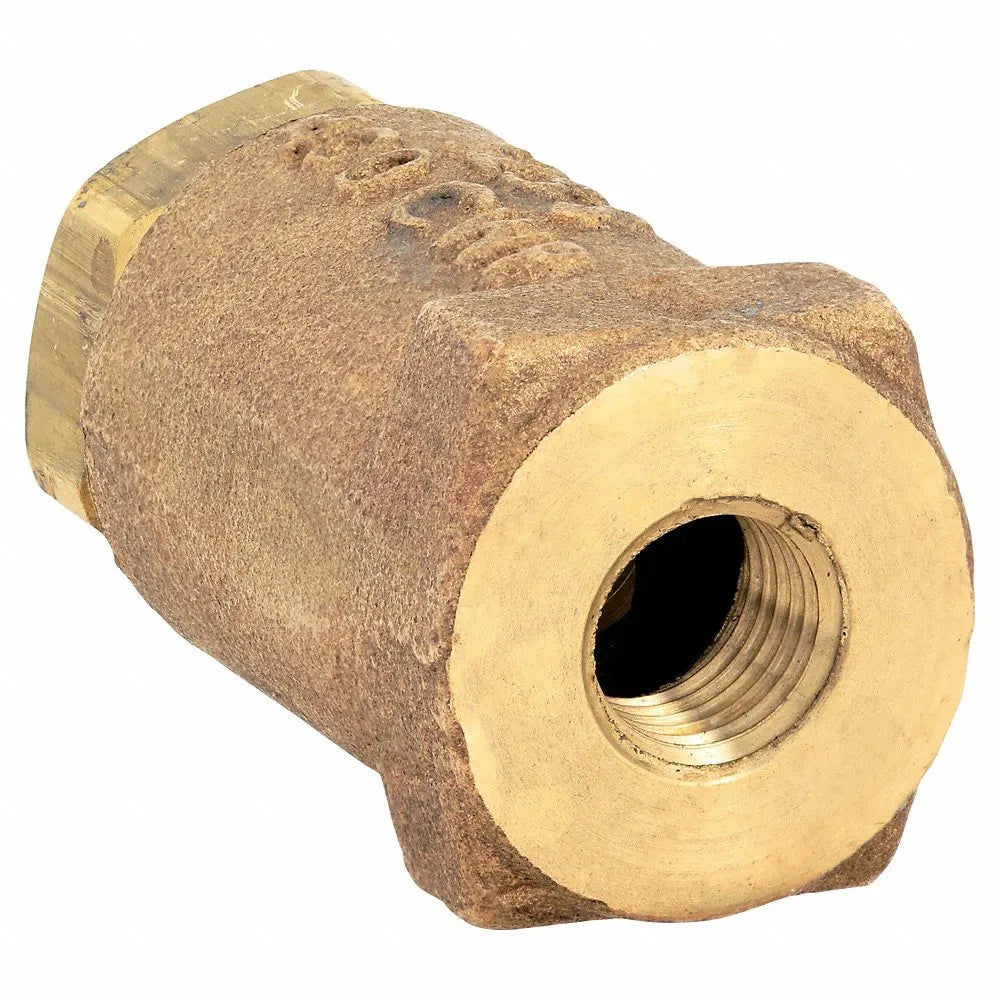

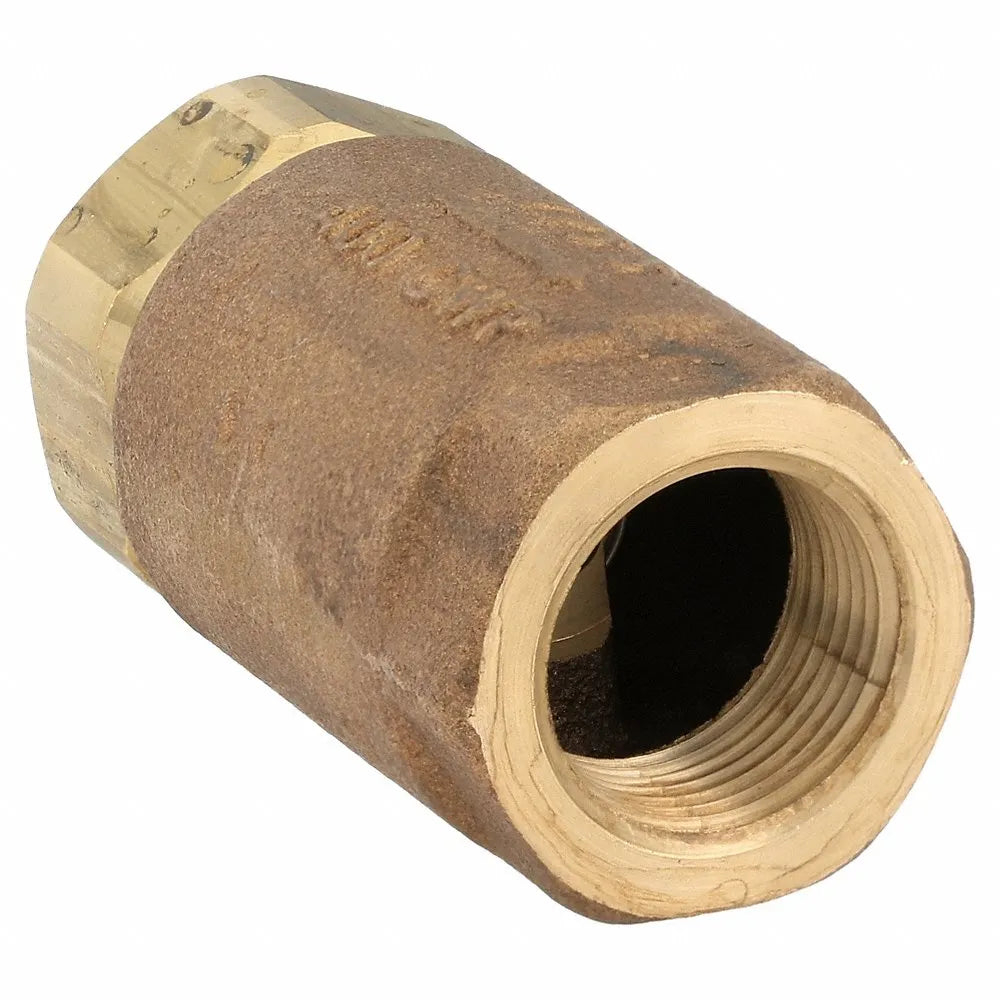

PARKER 6110301 Ball Cone Spring Check Valve

Product Description

The PARKER 6110301 is a ball cone spring check valve made of bronze. It allows fluid to flow in one direction and prevents reverse flow. It features female NPT connections on both sides, each sized at one half inch. This valve is designed for both horizontal and vertical installation.

• Constructed from durable bronze material.
• Spring-loaded mechanism for reliable operation.
• Suitable for steam and central heating applications.

Product Highlights

This valve is utilized in applications where a secure seal is necessary, particularly for steam or water.

Product Information

Standard Information

• Item: Ball Cone Spring Check Valve
• Body Material: Bronze

Technical Specifications

• Valve Body Style: Inline
• Check Mechanism: Ball
• Connection Gender - Side 1: Female
• Connection Gender - Side 2: Female
• Connection Type - Side 1: NPT
• Connection Type - Side 2: NPT
• Flow Rate: 1.4 GPM
• Max. Pressure (cwp): 400 psi
• Max. Pressure (steam): 125 psi
• Media Temp. Range: 33°F to 406°F
• Pipe Size: 1/2
• Seal Material: RPTFE
• Valve Series: 61
• Valve Ways: 2-Way
