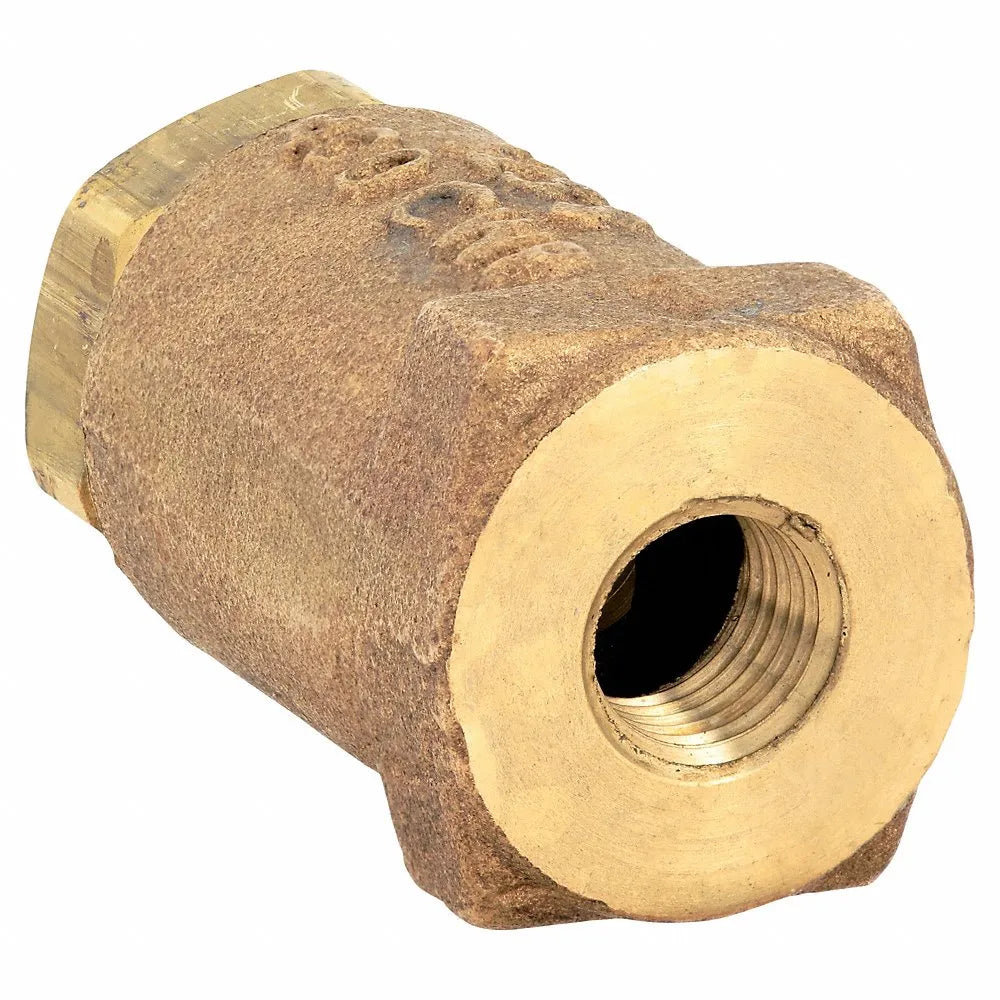

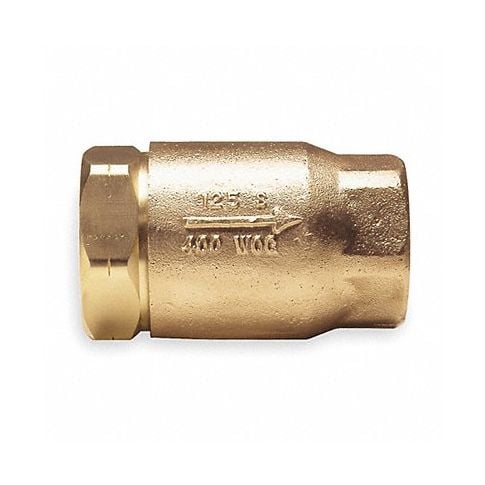

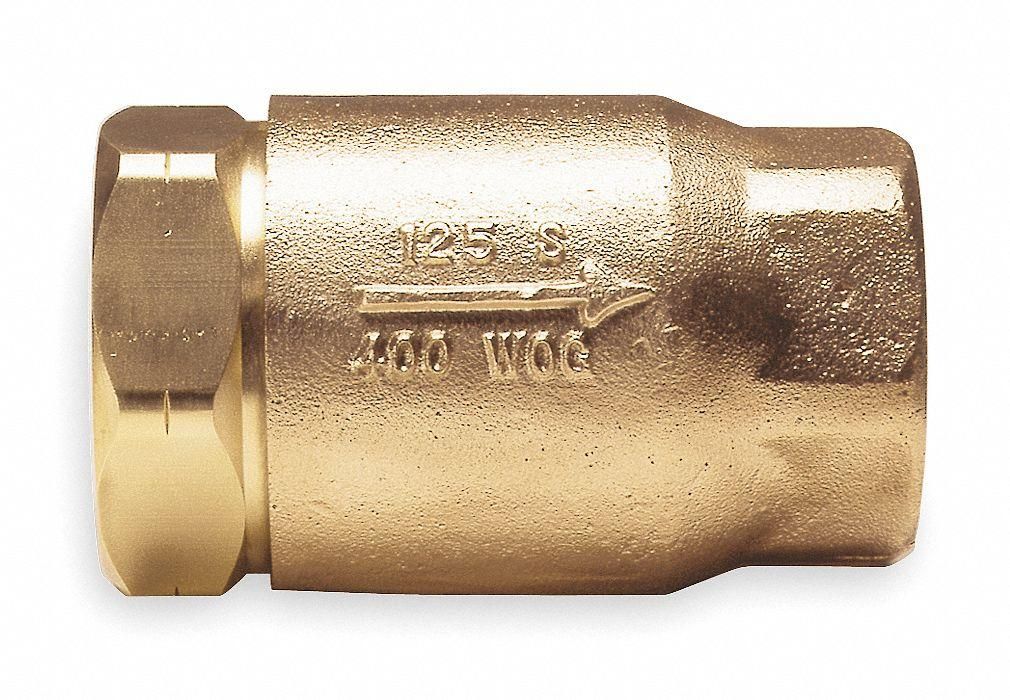

PARKER 6110101 Ball Cone Spring Check Valve, Bronze, 1/4 FNPT

Product Description

The PARKER 6110101 is a ball cone spring check valve made of bronze. It is designed to allow fluid flow in one direction while preventing reverse flow. Its inline construction minimizes velocity change, making it suitable for various applications, including plumbing, HVAC, and industrial sectors.

• Constructed from durable bronze material.
• Incorrect mounting orientation can lead to valve failure.
• Utilizes a ball mechanism for effective flow control.

Product Highlights

This valve features a stainless steel spring and an RPTFE ball and seat material, ensuring reliable performance in demanding environments. It supports both horizontal and vertical mounting positions.

Product Information

Standard Information

• MPN: 6110101
• Brand: PARKER

Technical Specifications

• Body Material: Bronze
• Connection Type: 1/4 inch FNPT
• Cracking Pressure: 0.5 psi
• Max Steam Pressure: 125 psi
• Max Water Pressure: 400 psi
• Operating Temperature Range: 33°F to 406°F
• Flow Rate: 0.85 GPM
• Dimensions: Length - 2.0625 inches, Width - 2.062 inches, Height - 1.125 inches
