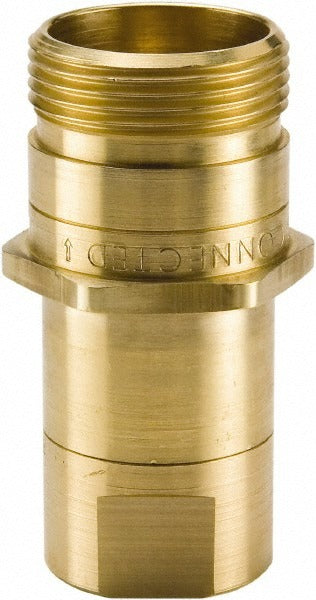

Parker 6105-16 Female Pipe Rigid Nipple Fitting 3000 Psi

Product Description

The PARKER 6105-16 is a straight female pipe rigid nipple fitting designed for high-pressure hydraulic hose assemblies. Part of the Parker 6100 Series, it features a 1-inch NPTF threaded connection machined from brass for reliable sealing under demanding conditions. Rated to 3,000 psi maximum working pressure and capable of handling fluid temperatures from -40 degrees F to 250 degrees F, this fitting is built for continuous-duty hydraulic service. It weighs 1.3 pounds and measures 3.55 inches in length with a 1.88-inch body diameter. Licensed trades and hydraulic system specialists are the primary installers.

This fitting is suited for mobile and stationary hydraulic systems where a rigid female pipe end connection is required. Stated applications include dump trailers, engine test stands, oil field equipment, and submersible pumps. The straight body geometry simplifies inline hose routing in tight plumbing layouts. The NPTF thread form provides a pressure-tight mechanical seal without requiring additional sealant in most installations, making it a dependable choice for fluid-power circuits operating at or near rated pressure.

Key Features

• 3,000 psi maximum working pressure rating
• 1-inch NPTF threaded connection for pressure-tight sealing
• Brass construction for corrosion resistance in hydraulic fluid service
• Wide temperature range: -40 degrees F to 250 degrees F
• Straight body shape simplifies inline hose routing
• Part of the Parker 6100 Series for consistent fitment across the product family

Compatibility

Designed for use with dump trailers, engine test stands, oil field equipment, and submersible pump hydraulic systems requiring a 1-inch female pipe rigid nipple connection at 3,000 psi working pressure.

Installation Notes

Installation should be performed by a qualified hydraulic technician or licensed trade professional. Depressurize and isolate the hydraulic circuit completely before removing or installing any fittings. NPTF threads are designed to seal on the thread form itself; inspect threads for damage before assembly and apply thread sealant only if required by the system specification. Torque to the assembly standard appropriate for the fitting size and material as specified by the system designer or applicable fluid-power standards.
