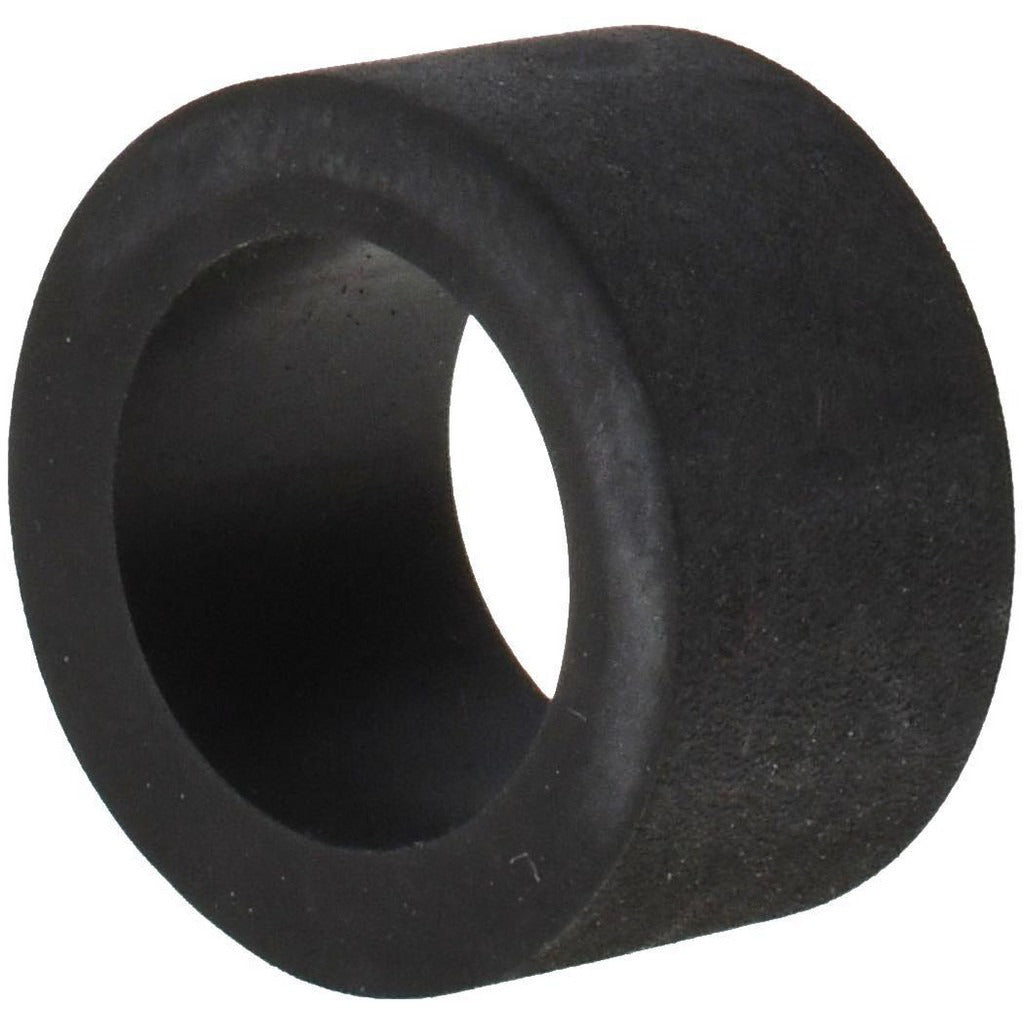

Parker 60VLV-10 Compression Tube Sleeve Viton 5/8 in Od

Product Description

The PARKER 60VLV-10 is a Viton compression tube sleeve designed to create a leak-free mechanical seal in compression-style tube fittings. The sleeve seats against the fitting body and ferrule to grip and seal the outside diameter of the tubing without the need for flared ends or soldering. Manufactured from Viton elastomer, it handles a service temperature range of -30 degrees F to 275 degrees F, making it suited for fluid and pneumatic lines where thermal cycling, chemical resistance, or hydrocarbon exposure is a concern. It is installed by plumbers, pipefitters, and hydraulic technicians working on pressurized tube assemblies.

This sleeve fits tubing with a 5/8 inch outside diameter and conforms to ISO 6149 and SAE J1926 thread and dimensional standards. It is appropriate for use in industrial fluid power systems, hydraulic lines, and plumbing assemblies where compression-style end connections are specified. The NPTF thread standard designation indicates compatibility with tapered pipe thread fittings common in North American trade applications. Typical installations include control lines, instrument tubing, and fluid transfer circuits in both light commercial and industrial settings.

Key Features

• Viton construction provides resistance to hydrocarbons, fuels, and elevated-temperature fluid media
• Fits 5/8 inch outside diameter tubing for a reliable mechanical grip
• Compression-style end connection eliminates the need for flaring or soldering
• Rated from -30 degrees F to 275 degrees F for broad service range
• Conforms to ISO 6149 and SAE J1926 dimensional standards
• NPTF thread standard for compatibility with tapered pipe thread fittings

Compatibility

Designed for use in compression tube fitting assemblies accepting 5/8 inch OD tubing with NPTF connections that conform to ISO 6149 and SAE J1926 standards. Consult the fitting assembly documentation to confirm sleeve series compatibility before installation.

Installation Notes

Installation is performed by a qualified pipefitter or hydraulic technician. De-pressurize and bleed down the line before disassembling any fitting. Ensure tubing is cut square and deburred before seating the sleeve. Do not over-tighten the compression nut, as excessive torque can deform the sleeve and compromise the seal.
