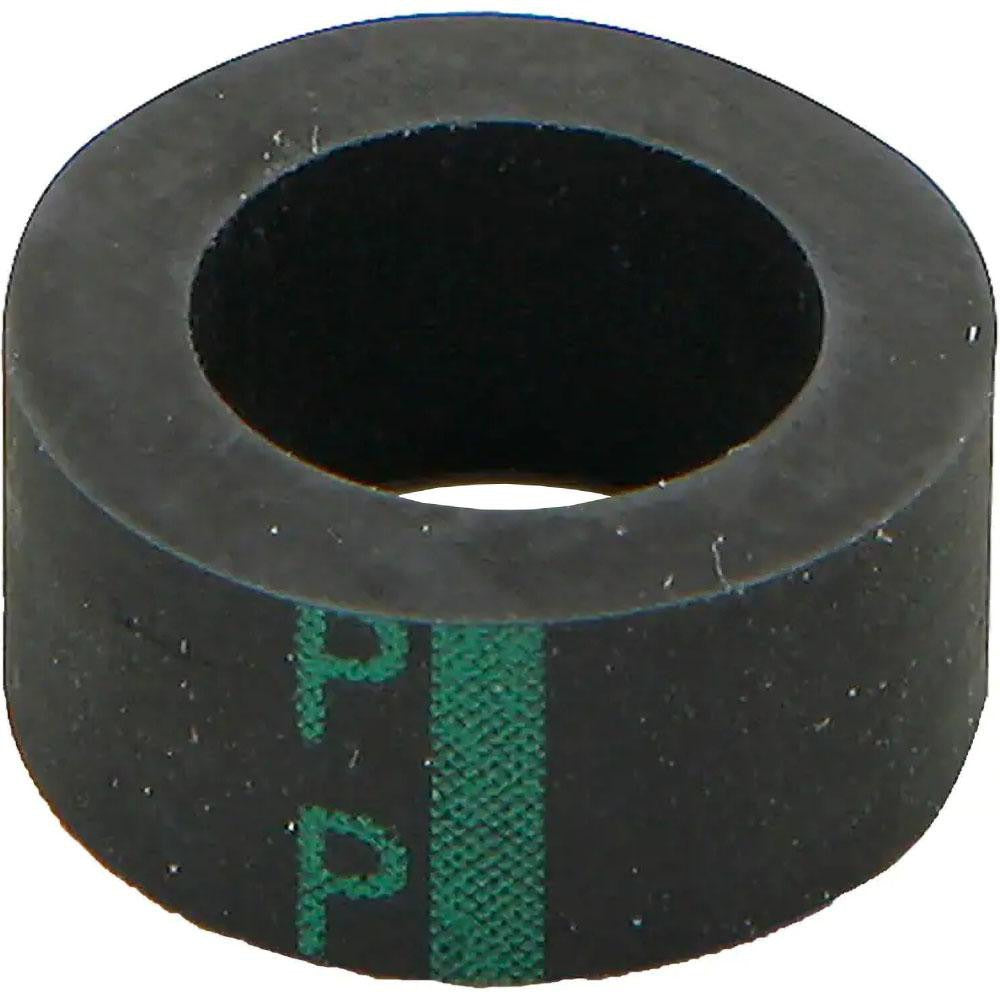

Parker 60VL-3 Compression Tube Sleeve Buna-n Nptf

Product Description

The PARKER 60VL-3 is a Vibra-Lok compression tube sleeve designed for use in hydraulic and pneumatic tubing assemblies. This sleeve functions as the gripping and sealing component within a compression-style fitting, creating a secure mechanical connection without the need for flaring or soldering. Made from Buna-N elastomer, it delivers reliable service across a temperature range of -30 degrees F to 275 degrees F. Compliant with ISO 6149 and SAE J1926 standards, the 60VL-3 is suited for fluid power and instrumentation lines where vibration resistance and leak-free connections are required. Licensed plumbers, pipefitters, and fluid power technicians install this sleeve as part of compression fitting assemblies in industrial and mobile equipment systems.

The 60VL-3 sleeve is used in compression fitting assemblies on tubing runs in hydraulic systems, pneumatic circuits, fuel lines, and instrumentation plumbing. Its Buna-N construction makes it appropriate for use with petroleum-based fluids, air, water, and many common hydraulic oils. The NPTF thread standard ensures compatibility with standard tapered pipe thread ports common in North American fluid power and industrial plumbing applications. Typical installation scenarios include OEM equipment builds and field service replacements where a vibration-resistant tube connection is needed.

Key Features

• Vibra-Lok compression style provides vibration-resistant tube retention without flaring or brazing
• Buna-N material offers compatibility with petroleum-based fluids, hydraulic oils, and air
• Compliant with ISO 6149 and SAE J1926 standards for fluid power fittings
• NPTF thread standard for use with tapered pipe thread ports
• Rated for temperatures from -30 degrees F to 275 degrees F
• Lightweight at 0.08 pounds per piece

Compatibility

Designed as an OEM-style replacement compression tube sleeve for use in PARKER Vibra-Lok compression fitting assemblies meeting ISO 6149 and SAE J1926 standards with NPTF connections.

Installation Notes

Installation is performed by licensed pipefitters, plumbers, or fluid power technicians. Depressurize and isolate the hydraulic or pneumatic line completely before disassembling any fitting. Ensure tubing is cut square and deburred before seating the sleeve to achieve a proper seal. Follow the fitting manufacturer torque and assembly procedure for compression fittings — do not over-tighten, as this can deform the sleeve and compromise the connection.
