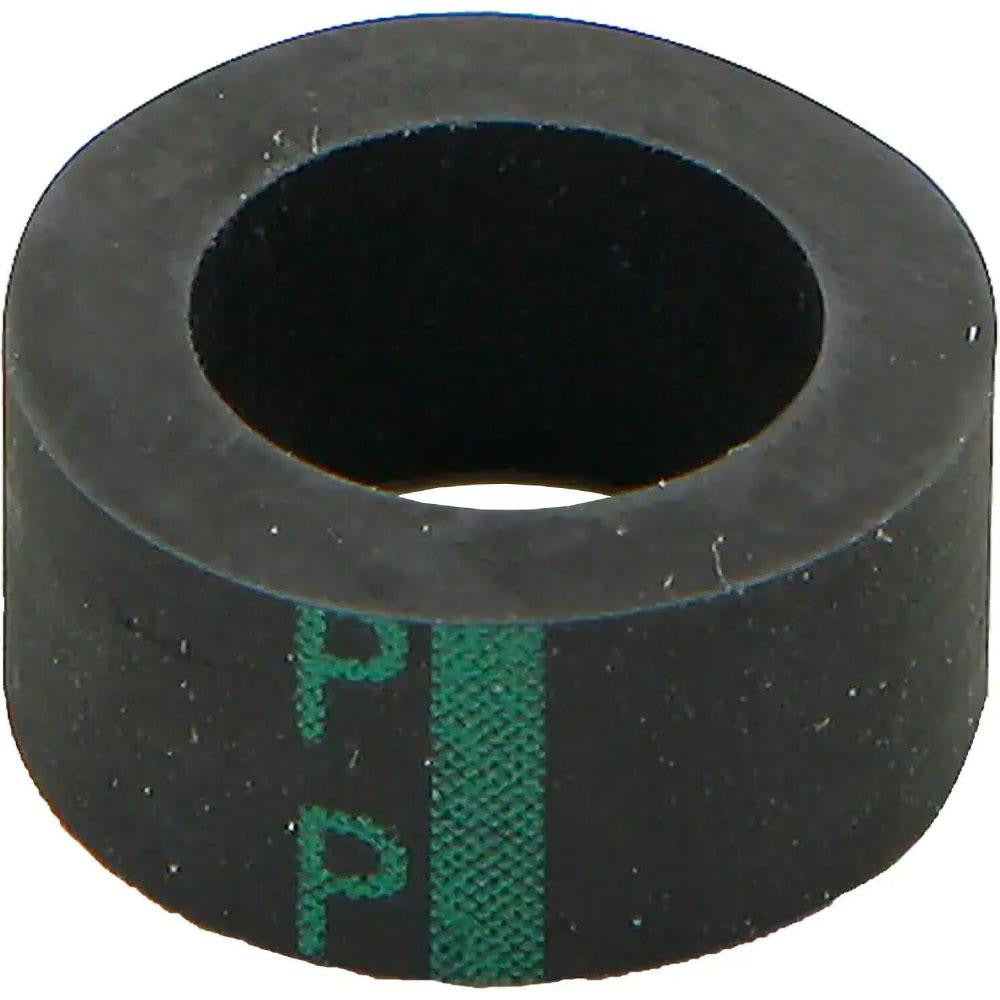

Parker 60VL-10 Compression Tube Sleeve Buna-n Nptf

Product Description

The PARKER 60VL-10 is a Vibra-Lok compression tube sleeve designed for use in fluid and pneumatic line assemblies where a reliable, leak-resistant fitting is required. Manufactured from Buna-N elastomer, this sleeve conforms to ISO 6149 and SAE J1926 standards and is rated for a temperature range of -30 degrees F to 275 degrees F. It functions as the compression element in a sleeve-and-nut fitting assembly, creating a mechanical seal around the tube OD when the fitting is tightened. HVAC technicians, plumbers, and fluid power mechanics typically install this sleeve as part of a compression fitting assembly in hydraulic, refrigerant, or fluid transfer lines.

This sleeve suits residential and light commercial applications where compression-style tube fittings are required. The Vibra-Lok compression style provides resistance to loosening under vibration, making it appropriate for equipment installations subject to mechanical vibration such as compressors, pumps, and engine-driven systems. It is compatible with NPTF-threaded fitting bodies that accept this sleeve style and dimensionally matches the 60VL series fitting line from PARKER.

Key Features

• Buna-N construction provides good resistance to petroleum-based fluids and moderate temperature service
• Vibra-Lok compression style resists loosening in high-vibration environments
• Meets ISO 6149 and SAE J1926 standards for fitting interchangeability and performance
• NPTF thread standard for pressure-tight connections without sealant tape in compatible fittings
• Lightweight at 0.01 pounds, sold individually for single-point maintenance or repair

Compatibility

Designed for use with PARKER 60VL series compression fitting assemblies. Intended for use with NPTF-threaded fitting bodies conforming to ISO 6149 and SAE J1926 standards. No additional compatible model numbers were specified in the product data.

Installation Notes

Installation is performed by licensed plumbers, HVAC technicians, or fluid power mechanics depending on the application. De-energize and depressurize the system fully before disassembling any fitting. Ensure the tube end is cut square and deburred before seating the sleeve to achieve a proper compression seal. Follow the fitting manufacturer torque procedure and do not over-tighten, as over-compression can damage the Buna-N sleeve and compromise the seal.
