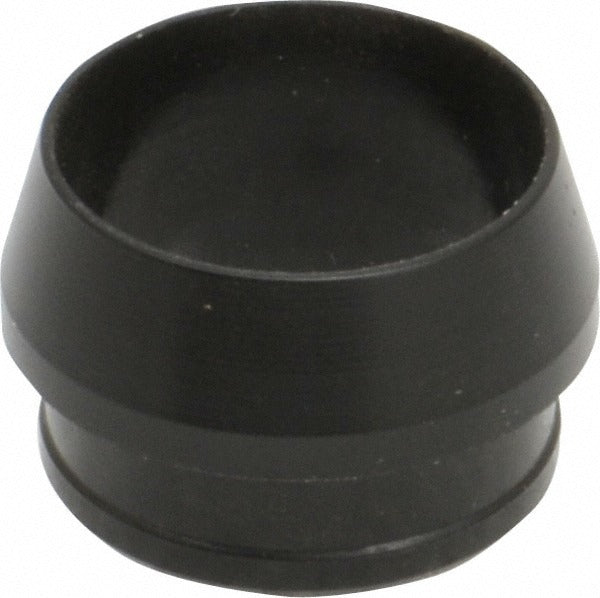

Parker 60P-8 Compression Tube Sleeve Acetal 150 Psi

Product Description

The PARKER 60P-8 is an acetal compression tube sleeve designed to create a secure, leak-resistant connection in compression fitting assemblies. The sleeve seats between the compression nut and the fitting body, forming a mechanical grip on the tubing as the nut is tightened. Built from acetal resin, this sleeve offers good chemical resistance and dimensional stability across a broad service range. It is rated for a maximum working pressure of 150 psi and a maximum temperature of 150 degrees F, with a minimum operating temperature of 0 degrees F. This component is typically installed by plumbers, HVAC technicians, and industrial pipe fitters working with compression-style tubing systems.

The PARKER 60P-8 sleeve is suited for use in residential and light commercial plumbing, fluid transfer lines, and instrumentation tubing applications where compression fittings are specified. Acetal construction makes it appropriate for use with water, many mild chemicals, and pneumatic service within the rated pressure and temperature limits. It is commonly used wherever a reliable, tool-assisted tube-grip connection is required without soldering or threading.

Key Features

• Acetal construction provides chemical resistance and dimensional stability
• Rated to 150 psi maximum working pressure
• Operating temperature range: 0 degrees F to 150 degrees F
• Compression end connection for tool-assisted, no-solder installation
• Compact sleeve form factor integrates with standard compression fitting assemblies

Compatibility

Designed as an OEM-style component for use in standard compression fitting assemblies requiring an acetal sleeve insert.

Installation Notes

Installation is performed by plumbers or HVAC technicians working with compression tubing systems. Shut off and depressurize the fluid or pneumatic line before disassembly or installation. Hand-tighten the compression nut onto the fitting body to seat the sleeve, then use an appropriate wrench to complete the connection per the fitting manufacturer's guidelines. Do not overtighten, as acetal sleeves can deform if excessive force is applied.
