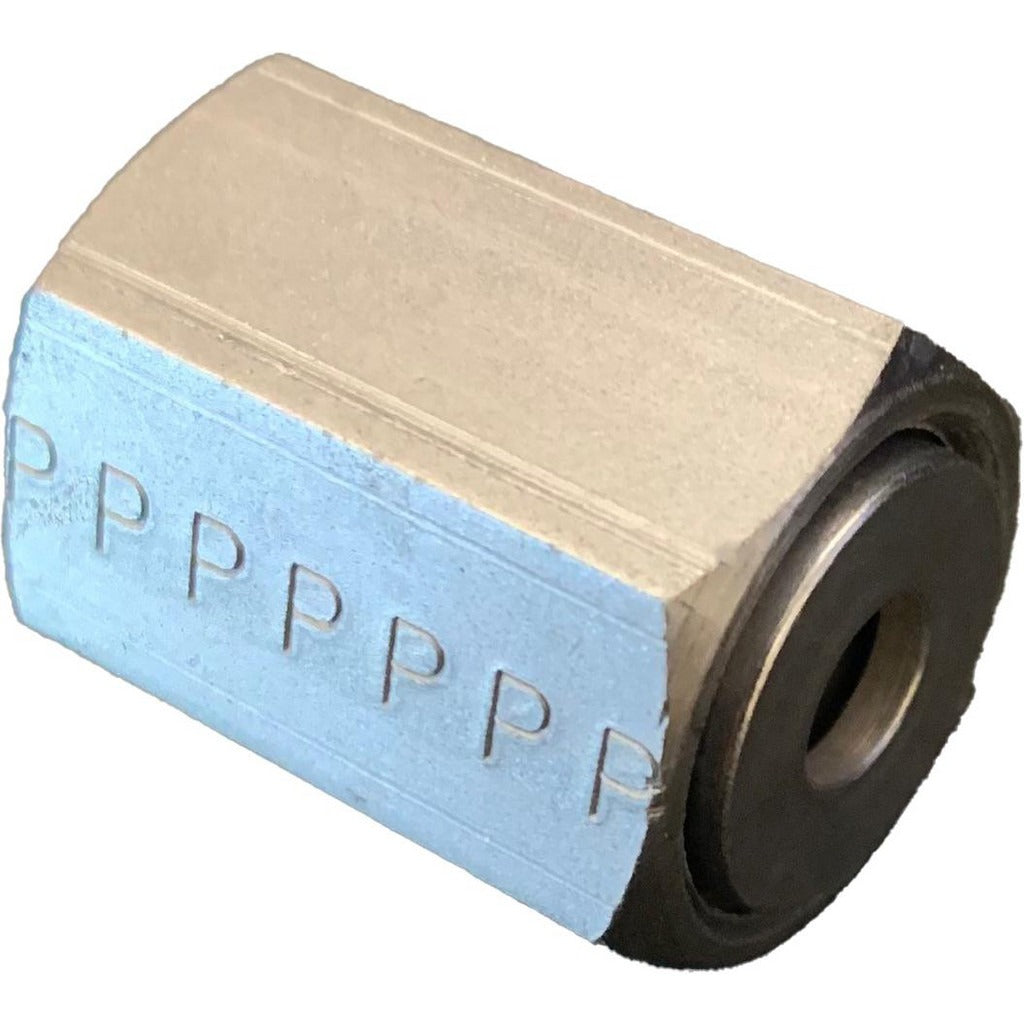

Parker 6 Tlfa-s Seal-lok Tube Fitting Steel Orfs Flat-face

Product Description

The PARKER 6 TLFA-S is a compression tube field attachable Seal-Lok fitting designed for O-Ring Face Seal (ORFS) flat-face tube end connections in hydraulic and fluid systems. Constructed from steel, this fitting allows technicians to create a reliable, leak-resistant ORFS connection directly in the field without requiring swaged or pre-assembled ends. The flat-face ORFS design provides a positive metal-to-metal seating surface combined with an O-ring seal, making it well suited for high-pressure hydraulic lines where leak-free performance is critical. Installation is handled by qualified hydraulic or fluid power technicians.

This fitting is used in hydraulic plumbing applications where field assembly of tube end connections is required. The ORFS flat-face end connection style is common in mobile hydraulic equipment, industrial machinery, and fluid power systems. It is specifically designed for use with the 6 TLFA gauge and 6 TLFA mandrel during the field attachment process, ensuring the tube end is formed and seated to the correct geometry before the fitting is torqued into the mating port.

Key Features

• Field attachable design allows on-site tube end assembly without shop equipment
• O-Ring Face Seal flat-face connection provides leak-resistant performance in high-pressure hydraulic lines
• Steel construction for durability in demanding fluid power environments
• Compatible with 6 TLFA gauge and 6 TLFA mandrel for proper tube forming
• Single-piece package quantity supports per-fitting procurement for repair and maintenance work

Compatibility

Designed for use with the 6 TLFA gauge and 6 TLFA mandrel as part of the PARKER Seal-Lok field attachable tube end system. End connections are Flat-Face x ORFS x Tube configuration.

Installation Notes

Installation should be performed by a qualified hydraulic technician familiar with ORFS fitting assembly procedures. Depressurize and isolate the hydraulic circuit completely before disassembling any fittings or tube ends. Use the specified 6 TLFA gauge and 6 TLFA mandrel to form the tube end correctly prior to assembly. Inspect the O-ring and sealing face for damage before torquing the fitting to the mating port.
