Parker 6 Tlfa Mandrel Seal Assembly Mandrel Orfs Tube

Product Description

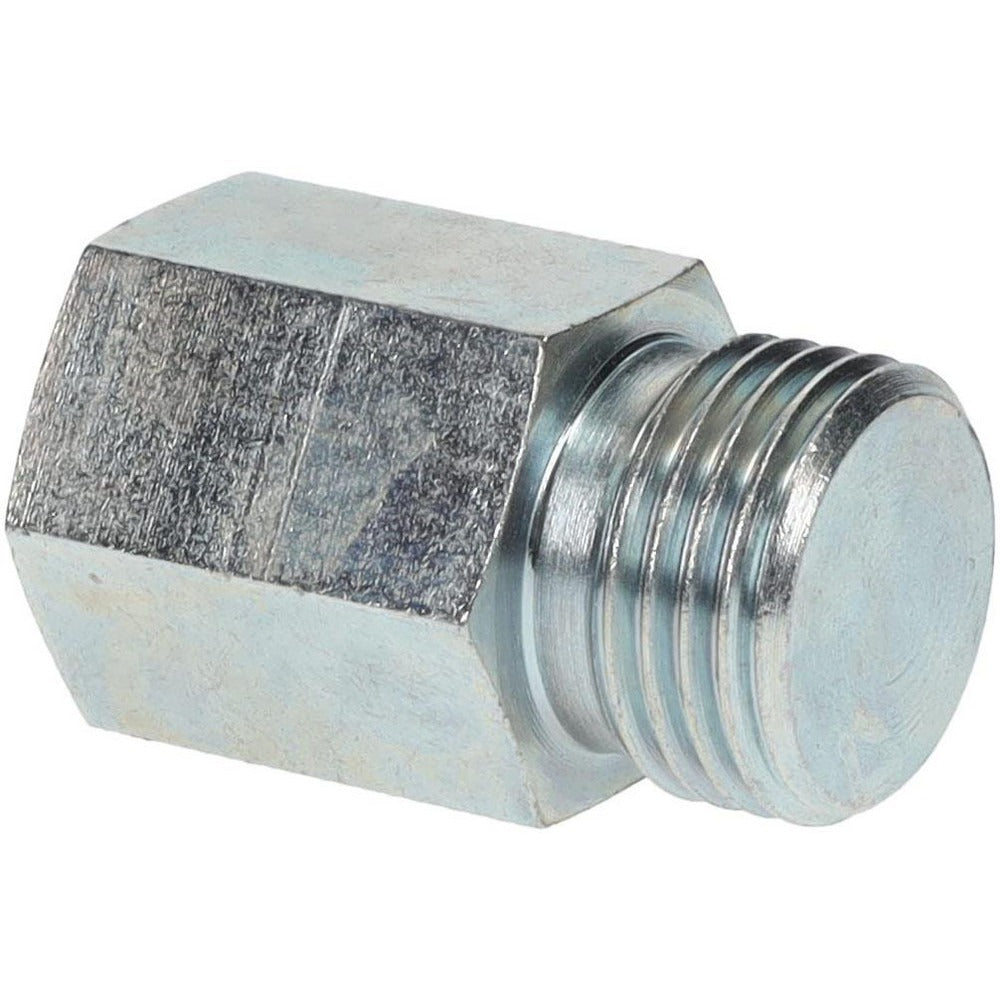

The PARKER 6 TLFA MANDREL is a compression tube Fastseal seal assembly mandrel designed for use in hydraulic and fluid-transfer line assemblies. Manufactured from steel, this mandrel supports the proper formation and seating of Fastseal tube end connections. It serves as a tooling component during the assembly process, ensuring that flat-face and O-ring face seal (ORFS) tube ends are correctly prepared before final installation. Licensed hydraulic technicians and fluid power specialists typically use this mandrel when assembling Parker Fastseal fittings in mobile, industrial, or stationary hydraulic systems.

This mandrel is intended for use with Parker Fastseal seal assembly tooling in applications involving flat-face ORFS tube end connections. It is suited for shops and field technicians assembling or repairing hydraulic lines where Fastseal compression tube fittings are specified. The compact dimensions of 1.25 inches in height and 1 inch in both width and length make it easy to handle in bench or field assembly scenarios.

Key Features

• Steel construction for durability under repeated assembly use
• Compatible end connections: Flat-Face, ORFS, and Tube configurations
• Compact form factor at 1.25 inches height and 1 inch width and length
• Designed specifically for use with the Parker 6 TLFA-S Fastseal fitting
• Single-piece mandrel format supports consistent, repeatable seal assembly

Compatibility

Designed for use with Parker part number 6 TLFA-S Fastseal compression tube fittings featuring flat-face ORFS tube end connections.

Installation Notes

This mandrel is a tooling component used by hydraulic technicians during bench or field assembly of Parker Fastseal tube end fittings. Depressurize and isolate any hydraulic circuit completely before disassembling or assembling fittings. Follow the fitting manufacturer assembly procedure to ensure proper seating of the ORFS seal face. Refer to applicable fluid power safety standards and the Parker Fastseal assembly instructions for correct mandrel usage sequence.
