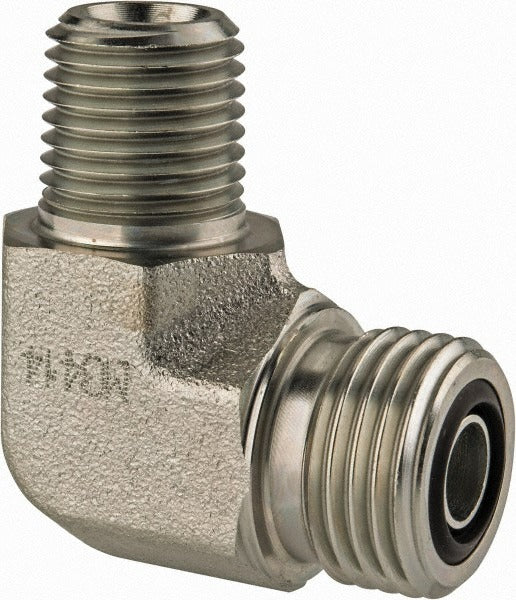

Parker 6 Clo-s Male Elbow 3/8 Tube Orfs X Nptf 6000 Psi

Product Description

The PARKER 6 CLO-S is a compression tube male elbow fitting designed for high-pressure hydraulic and fluid-transfer plumbing applications. It connects a 3/8-inch outside diameter tube to a 1/4-18 NPTF threaded port using an O-Ring Face Seal (ORFS) connection on the tube side. The zinc-plated steel construction resists corrosion in demanding service environments. With a maximum working pressure rating of 6000 psi, this fitting is built for heavy-duty use in hydraulic lines, fluid power systems, and related industrial plumbing installations. Licensed plumbers and hydraulic system technicians are the primary installers of this type of compression elbow.

This fitting is suited for residential, commercial, and industrial fluid power systems where a 90-degree directional change is required between a compression tube line and an NPTF threaded port. The ORFS end provides a leak-resistant seal at the face of the fitting, making it appropriate for high-pressure hydraulic circuits. It is a single-piece, ready-to-install component sold individually with no additional hardware required.

Key Features

• Maximum working pressure of 6000 psi for high-pressure hydraulic service
• ORFS x NPTF end connections for leak-resistant, thread-sealed assembly
• 3/8-inch tube outside diameter compression end
• 1/4-18 NPTF thread standard for pressure-tight port connections
• Zinc-plated steel construction for corrosion resistance
• 90-degree male elbow configuration for directional routing in tight spaces

Compatibility

Designed as an OEM-style replacement or service fitting for hydraulic and fluid power systems requiring a 3/8-inch OD tube compression connection to a 1/4-18 NPTF threaded port with an O-Ring Face Seal interface.

Installation Notes

Installation should be performed by a qualified hydraulic technician or licensed plumber familiar with high-pressure fluid systems. Depressurize and drain the system fully before removing or installing any fittings. Inspect the O-ring sealing surface for damage before assembly, and verify thread compatibility with the mating port before applying torque. Follow applicable fluid power and plumbing codes for pressure-rated fittings in your jurisdiction.
