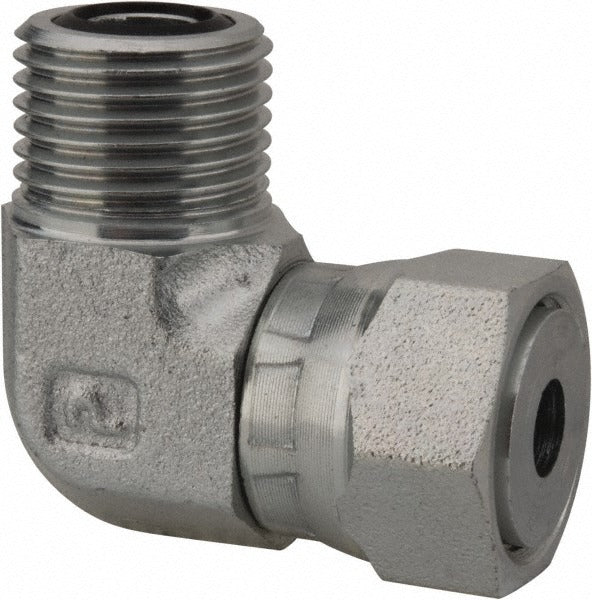

Parker 6 C6LO-S Swivel Elbow Orfs Steel 3/8 Inch 9200 Psi

Product Description

The PARKER 6 C6LO-S is a compression tube swivel elbow fitting with an O-Ring Face Seal (ORFS) end connection designed for high-pressure hydraulic and fluid transfer applications. Constructed from steel, it accommodates a 3/8-inch tube outside diameter and is rated for a maximum working pressure of 9200 psi. The swivel design allows the elbow to rotate during installation, reducing the risk of thread cross-loading and making it easier to align tubing runs without twisting the line. Licensed hydraulic technicians and fluid power specialists install this type of fitting in mobile equipment, industrial machinery, and related systems where reliable, leak-resistant connections are required.

This fitting is suited for hydraulic plumbing lines in both mobile and stationary equipment where UNF thread standards apply. The ORFS interface provides a metal-to-metal seat sealed by an O-ring at the face, which is a common connection style in high-pressure fluid circuits. Typical applications include hydraulic control systems, work-port connections, and tube-to-manifold assemblies where routing constraints call for a 90-degree directional change in the tubing run.

Key Features

• Steel construction for durability in high-pressure hydraulic service
• O-Ring Face Seal (ORFS) end connection minimizes leak paths under high pressure
• Swivel elbow design allows rotation during assembly for precise tube alignment
• Rated to 9200 psi maximum working pressure
• 3/8-inch tube outside diameter compatibility
• UNF thread standard for broad compatibility with standard hydraulic hardware

Compatibility

Designed as an OEM-style replacement or service fitting for hydraulic tube assemblies using 3/8-inch OD tubing with O-Ring Face Seal connections and UNF thread form.

Installation Notes

Installation should be performed by a qualified fluid power technician or hydraulic specialist. Depressurize and isolate the hydraulic circuit completely before removing or installing fittings. Inspect the O-ring for damage before assembly and ensure the face seal surface is clean and free of debris. Follow the equipment manufacturer and industry guidelines for proper fitting assembly and system pressure testing after installation.
