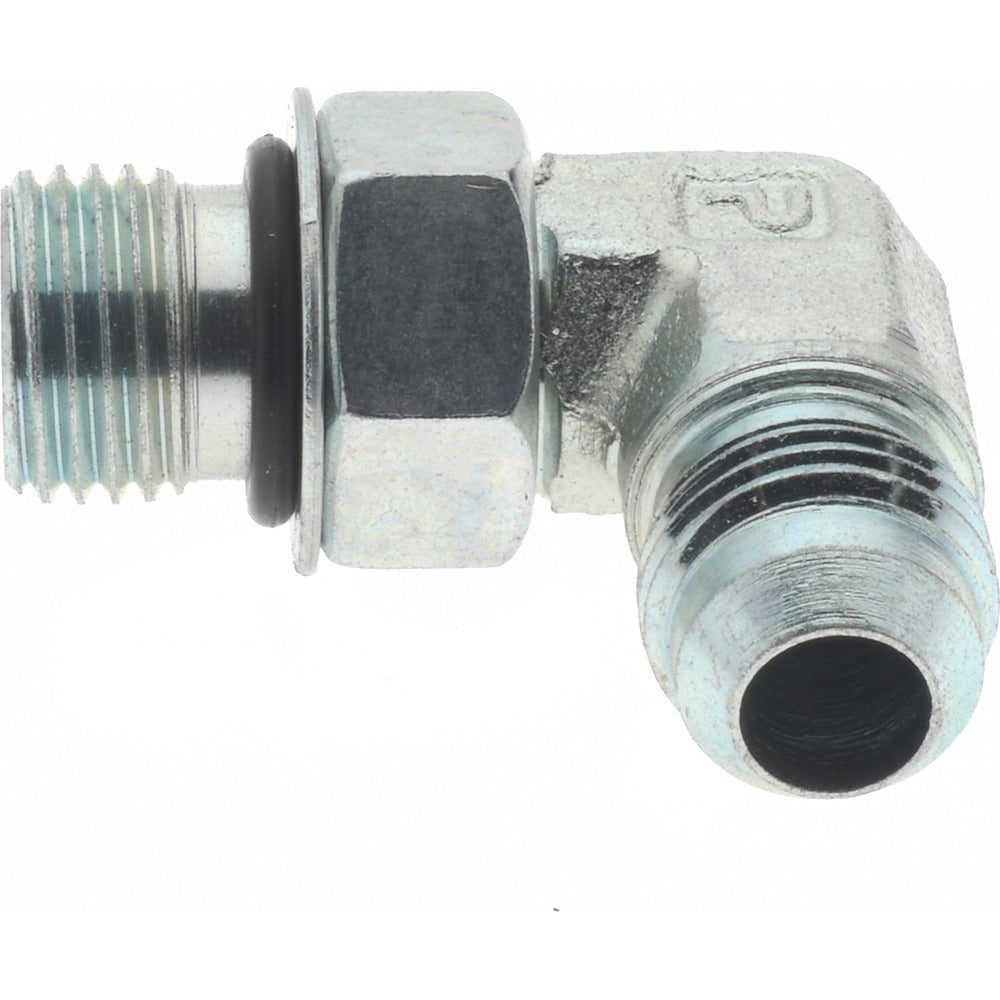

Parker 6 C5OX-S Steel Flared Tube Elbow 3/8 in Od

Product Description

The PARKER 6 C5OX-S is a 90-degree straight thread elbow fitting designed to connect a 37-degree flared tube end to an SAE straight thread O-ring boss (SAE-ORB) port. Manufactured from steel, it handles high-pressure hydraulic and fluid power lines in demanding industrial and mobile equipment applications. The fitting is rated for a maximum dynamic working pressure of 6000 psi and tolerates temperatures up to 500 degrees F (260 degrees C). Licensed HVAC, plumbing, and hydraulic technicians rely on this fitting to route tubing through tight spaces where an inline connection is not practical.

This elbow fitting is suited for use in hydraulic systems, mobile equipment, industrial machinery, and fluid power circuits where a 3/8-inch OD flared tube must transition to a SAE-ORB threaded port. The 37-degree flare angle conforms to SAE J514 and ISO 8434-2 standards, making it a compatible choice for systems built to those specifications. It is appropriate for both original equipment installations and field service replacement work across a wide range of hydraulic and fluid conveyance systems.

Key Features

• 90-degree elbow configuration routes tubing around obstacles without field bending
• 37-degree flare angle conforms to SAE J514 and ISO 8434-2 standards
• Flare x SAE-ORB end connections for leak-resistant metal-to-metal and O-ring sealing
• Rated to 6000 psi maximum dynamic working pressure
• Rated to 500 degrees F (260 degrees C) maximum working temperature
• Steel construction for durability in high-pressure fluid power environments

Compatibility

Designed for hydraulic and fluid power systems using 3/8-inch OD tubing with a 37-degree flare, connecting to SAE straight thread O-ring boss ports per SAE J514 and ISO 8434-2.

Installation Notes

Installation should be performed by a qualified hydraulic or fluid power technician. Depressurize and isolate the hydraulic circuit completely before removing any fittings or tubing. Inspect the flare seat and O-ring boss port for damage or debris before assembly, and replace the O-ring if reusing an existing port. Torque to the fitting manufacturer's specifications using a calibrated torque wrench — do not rely on feel alone for high-pressure hydraulic connections.
