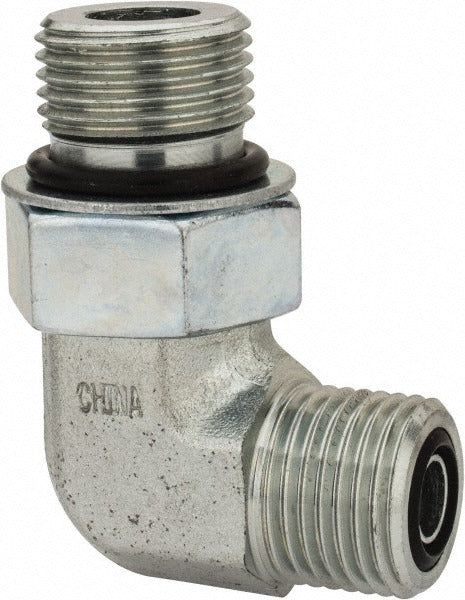

Parker 6-8 C5OLO-S Male Elbow Orfs Sae-orb 3/8 Od 6000 Psi

Product Description

The PARKER 6-8 C5OLO-S is a compression tube male elbow fitting designed to connect 3/8-inch OD tubing to a port with a 3/4-16 UNF O-ring face seal (ORFS) thread on one end and an SAE O-ring boss (SAE-ORB) thread on the other. Constructed from zinc-plated steel, this fitting handles maximum working pressures up to 6000 psi, making it well-suited for high-pressure hydraulic lines and fluid power systems. The elbow configuration redirects flow at a 90-degree angle to accommodate routing constraints in tight installations. Hydraulic technicians and fluid power specialists install this fitting as part of instrumentation, mobile hydraulic, and industrial fluid circuit assemblies.

This fitting is used in residential, commercial, and industrial hydraulic and fluid power applications where a reliable 90-degree tube-to-port connection is required. Typical scenarios include mobile equipment hydraulics, machine tool circuits, and industrial fluid lines where tube routing must change direction at a port face. The ORFS-to-SAE-ORB configuration is common in hydraulic manifolds, pumps, cylinders, and valve bodies that use SAE straight-thread O-ring ports paired with flared or compression tube assemblies.

Key Features

• ORFS x SAE-ORB end connections provide a dual-seal design that minimizes leak paths in high-pressure circuits
• Rated to 6000 psi maximum working pressure for demanding hydraulic applications
• Zinc-plated steel construction offers corrosion resistance in industrial and mobile equipment environments
• 3/8-inch OD tube connection with 3/4-16 UNF thread size for precise, standardized fit
• 90-degree male elbow configuration redirects tubing runs without the need for additional elbows or adapters
• Single-piece packaging (Pkg Qty 1) allows purchase of exact quantities needed for service or repair work

Compatibility

Designed as an OEM-style replacement or direct-use fitting for hydraulic and fluid power systems utilizing 3/8-inch OD compression tubing with 3/4-16 UNF O-ring face seal ports and SAE O-ring boss port connections.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and isolate the hydraulic circuit completely before removing any existing fittings or connecting this elbow. Inspect the O-ring and sealing surfaces for damage prior to assembly, and follow the fitting manufacturer's assembly instructions for proper O-ring lubrication and thread engagement. Refer to applicable fluid power standards and equipment OEM service documentation for torque and assembly requirements specific to the circuit.
