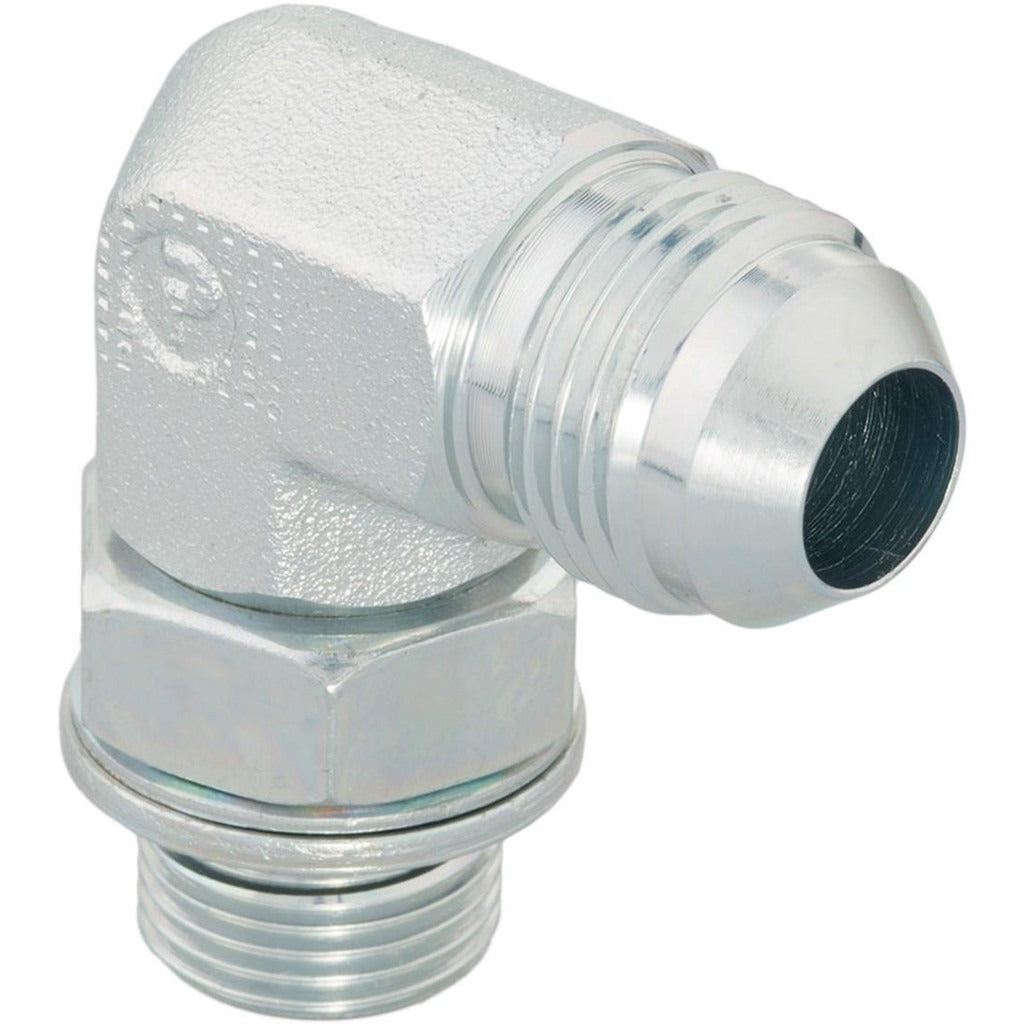

Parker 6-6C4OMXS Steel Male Elbow 3/8 in Tube Od Bspp

Product Description

The PARKER 6-6C4OMXS is a steel flared tube male elbow fitting designed for hydraulic and fluid-handling line connections requiring a 37-degree flare seat. It features a 3/8-inch tube OD flare end on one side and a 3/8-19 BSPP male thread on the other, allowing a 90-degree directional change in tubing runs. The fitting is rated to a maximum working pressure of 3,600 psi, making it suitable for moderate- to high-pressure service. It is commonly installed by hydraulic technicians, HVAC mechanics, and plumbing professionals working with metric or international thread standards.

This fitting is intended for use in hydraulic systems, fluid power circuits, and refrigeration or HVAC plumbing applications where a Flare x BSPP end connection is required. The BSPP thread standard is widely used in international equipment, making this elbow a practical solution when adapting domestic tubing to imported machinery, overseas-spec components, or systems specifying British Standard Parallel Pipe threads. Sold individually, it is appropriate for single-point repairs or new assembly work.

Key Features

• 37-degree flare seat conforms to standard flared-tube fitting geometry for reliable metal-to-metal sealing
• 3/8-19 BSPP male thread allows connection to British Standard Parallel Pipe-threaded ports and fittings
• 3,600 psi maximum dynamic working pressure supports moderate- to high-pressure hydraulic and fluid lines
• Steel construction provides durability in hydraulic and fluid power environments
• 90-degree elbow configuration allows direction changes in tight plumbing layouts without tube bending
• Compact package dimensions support storage and field carry in standard parts kits

Compatibility

Designed as an OEM-style replacement or new-installation fitting for hydraulic and fluid-handling systems requiring a 3/8-inch OD flared tube connection and a 3/8-19 BSPP male threaded port.

Installation Notes

Installation should be performed by a qualified hydraulic technician or licensed mechanic familiar with flared-tube fitting assembly and BSPP thread engagement. Depressurize and isolate the hydraulic or fluid circuit completely before removing any existing fittings or connecting new ones. Inspect the flare seat and BSPP thread for damage before assembly, and apply a compatible thread sealant or PTFE tape rated for the system fluid on the BSPP male threads only. Do not over-tighten; follow the fitting manufacturer torque guidelines for steel flare fittings in the applicable size range.
