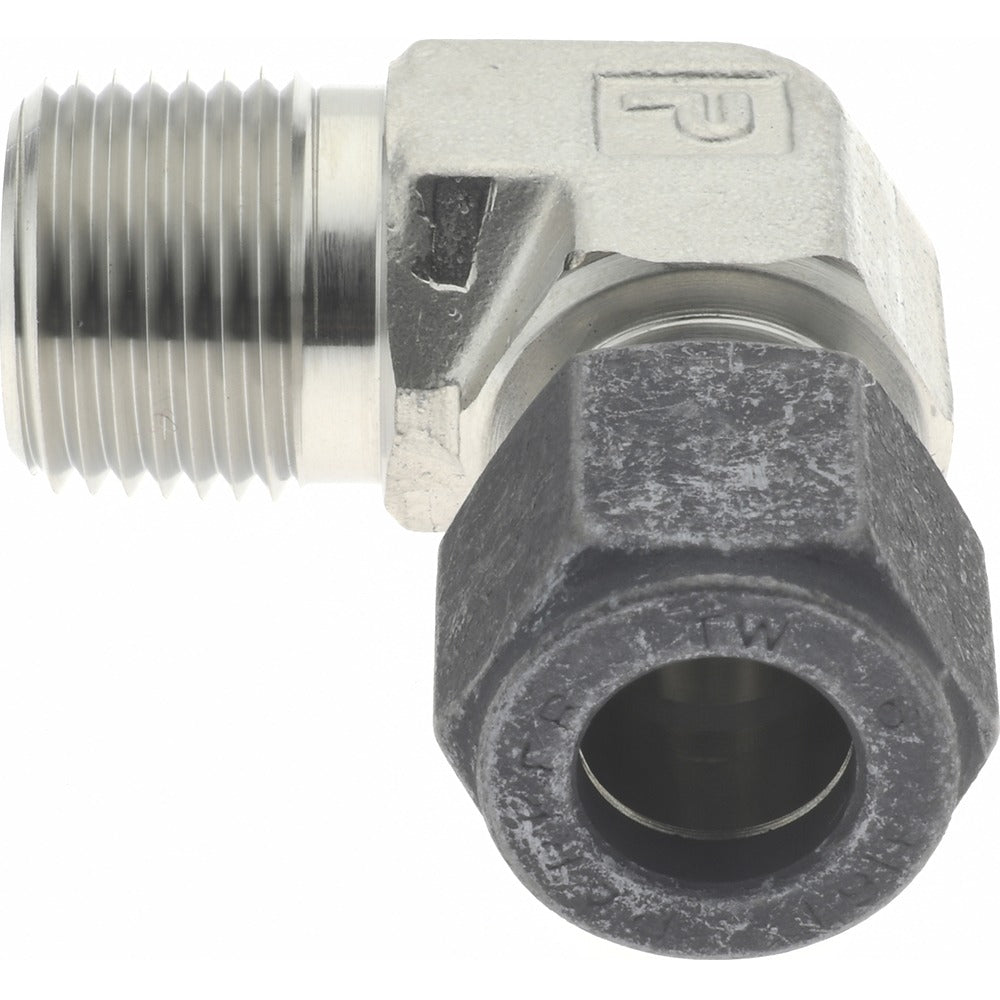

Parker 6-6 Cbz-ss Compression Male Elbow 3/8 in Ss

Product Description

The PARKER 6-6 CBZ-SS is a compression tube male elbow fitting machined from stainless steel. It transitions a compression tube connection to a male NPT threaded port at a 90-degree angle. With a maximum working pressure of 6600 psi, this fitting is built for demanding fluid and gas line applications where leak-free performance is critical. The 3/8-inch thread size and Compression x MNPT end configuration make it a go-to choice for instrumentation, hydraulic, and process piping systems. Licensed plumbers, pipefitters, and instrumentation technicians are the typical installers.

This fitting is suited for use in both industrial and commercial plumbing systems where stainless steel construction is required for corrosion resistance or sanitary compliance. Common applications include high-pressure fluid lines, compressed air systems, chemical process lines, and instrumentation tubing runs. The compression end accepts compatible tubing without the need for flaring, while the male NPT end threads directly into a female-ported component such as a valve body, manifold, or instrument port.

Key Features

• Stainless steel construction for corrosion resistance in harsh or wet environments
• Maximum working pressure of 6600 psi for high-pressure service
• 3/8-inch thread size with MPT thread standard
• Compression x MNPT end connections eliminate the need for tube flaring
• 90-degree male elbow configuration for direction changes in tight plumbing runs

Compatibility

Designed as an OEM-style replacement or new-installation compression fitting for high-pressure fluid and gas systems requiring a 3/8-inch male NPT outlet and a compression tube inlet.

Installation Notes

Installation should be performed by a licensed plumber or qualified pipefitter in accordance with applicable IPC or facility-specific piping codes. Shut off and depressurize the line completely before disassembly or installation. Hand-tighten the compression nut onto the tubing, then apply the appropriate number of additional turns with a wrench per standard compression fitting practice — do not overtighten, as stainless fittings can gall if forced. Apply thread sealant or PTFE tape to the male NPT threads before making up the threaded joint.
