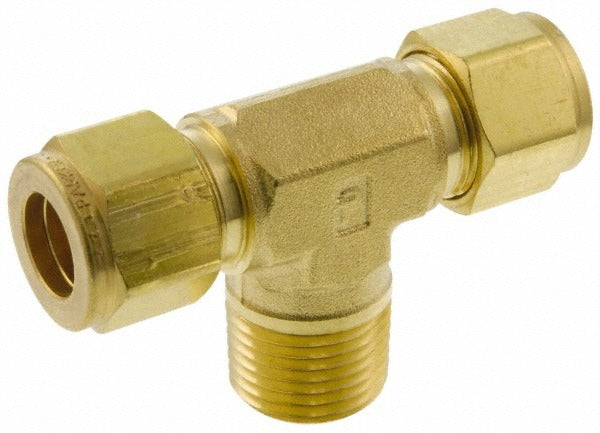

Parker 6-6-4 Sbz-b Male Branch Tee 1/4 in Mnpt Brass

Product Description

The PARKER 6-6-4 SBZ-B is a brass compression tube male branch tee designed for use in fluid and gas distribution systems that require a reliable, leak-free branch connection. This fitting provides three-way flow splitting with two compression ends and one male NPT threaded outlet, allowing a single line to branch off to an additional run or instrument port. Rated to 2300 psi maximum working pressure, this fitting is built for demanding industrial, HVAC, and instrumentation applications where pressure integrity is critical. The all-brass construction resists corrosion and holds up in both wet and dry service environments.

This male branch tee is suited for use in refrigeration tubing circuits, pneumatic control lines, hydraulic instrument manifolds, and similar compression-tube installations found in commercial HVAC, industrial process systems, and plumbing. It accepts 3/8 inch OD tubing on the compression ends and connects to a 1/4 inch male NPT port, making it a practical solution when a branch takeoff is needed along a main compression-tube run. Licensed HVAC technicians, pipefitters, and instrumentation mechanics are the primary installers of this fitting type.

Key Features

• Brass construction for corrosion resistance in wet and dry service
• Maximum working pressure of 2300 psi for high-pressure line service
• Compression x Compression x MNPT end connections for versatile branch routing
• 1/4 inch NPT male thread outlet for standard pipe thread connections
• Compact tee body suitable for tight panel or manifold installations
• Single-piece quantity packaging with a minimum order quantity of 1

Compatibility

Designed as an OEM-style replacement or direct substitute compression branch tee for systems using standard compression tube fittings with 1/4 inch MNPT branch outlets. Cross-reference Swagelok part number B-600-3-4TTM for equivalent fitment verification.

Installation Notes

Installation should be performed by a qualified pipefitter, HVAC technician, or instrumentation mechanic familiar with compression fitting assembly. Shut off and depressurize the line completely before disassembling any existing fitting or installing this tee. Compression fittings require proper ferrule seating and should be tightened to finger-tight plus the appropriate fractional turn per the fitting manufacturer's assembly instructions — do not overtighten. Verify all connections are leak-free under system pressure using an approved leak-detection method before returning the system to service.
