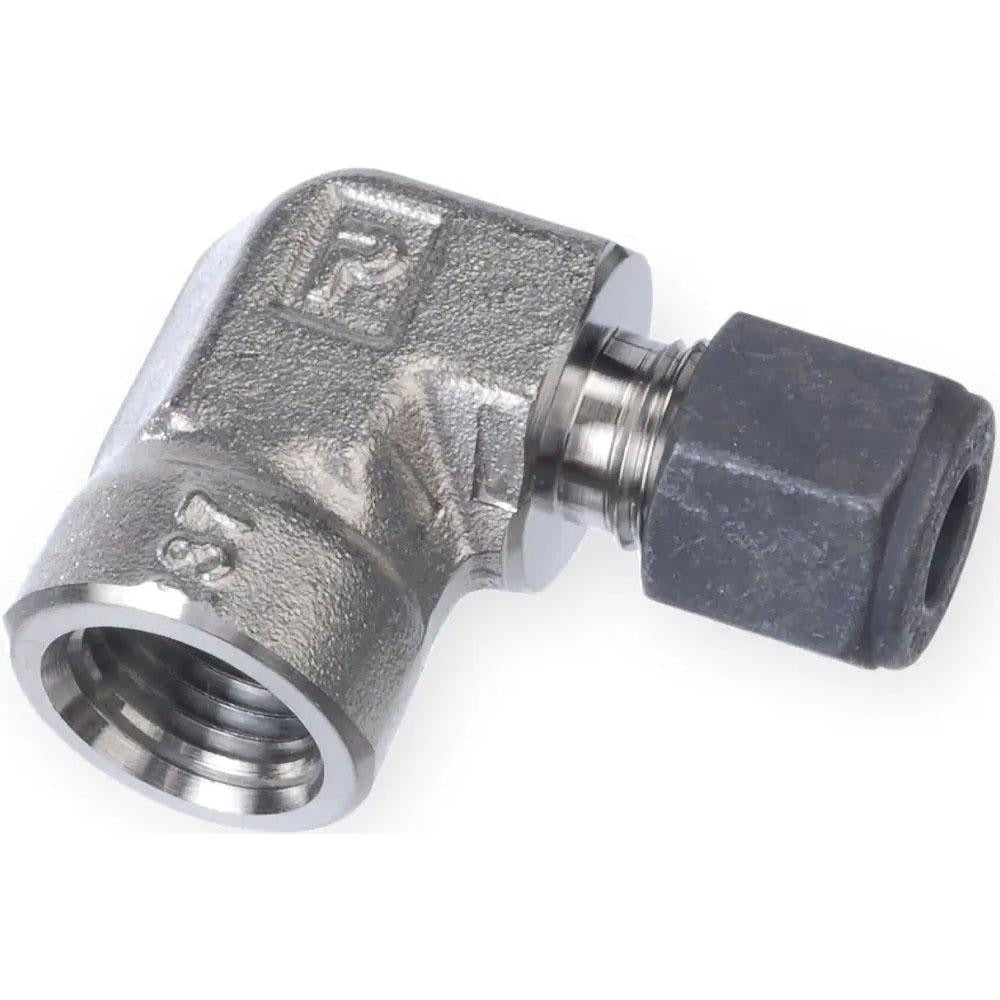

Parker 6-4 Dbz-ss Compression Female Elbow 1/4 in Fnpt Ss

Product Description

The PARKER 6-4 DBZ-SS is a compression tube female elbow fitting designed to create a 90-degree directional change in tubing runs while transitioning from a compression tube connection to a female NPT threaded port. Constructed from stainless steel to ASTM-B-124 and BS2872 standards, this fitting is built for demanding service environments where corrosion resistance and pressure integrity are required. It carries a maximum working pressure of 6600 psi, making it suitable for high-pressure instrumentation, process, and fluid control lines. Licensed plumbers, pipefitters, and instrumentation technicians are the primary installers of this fitting type.

This fitting is used in residential, commercial, and industrial applications where stainless steel construction is specified for corrosion resistance or cleanliness requirements. Typical install scenarios include instrument tubing panels, hydraulic control lines, refrigeration sensing lines, and process fluid systems. The compression by FNPT end configuration allows direct connection to female-threaded ports on valves, manifolds, gauges, or bulkhead fittings without the need for an additional adapter.

Key Features

• 90-degree elbow configuration routes tubing in tight spaces without bending
• Compression x FNPT end connections for tool-free tube insertion with threaded port compatibility
• Stainless steel construction meets ASTM-B-124 and BS2872 material standards
• 6600 psi maximum working pressure rated for high-pressure service
• 1/4 inch thread size fits standard quarter-inch instrumentation and process tubing ports

Compatibility

Designed as an OEM-style compression tube fitting for use with standard 1/4 inch OD tubing systems terminating at female NPT threaded ports across instrumentation, process, and fluid control applications.

Installation Notes

Installation should be performed by a licensed pipefitter, plumber, or instrumentation technician familiar with compression fitting assembly procedures. Isolate and depressurize the system fully before disassembly or connection. Compression fittings require proper tube squareness and deburring before insertion to ensure a leak-free seal. Thread engagement at the FNPT end should include appropriate thread sealant compatible with the process media and pressure rating.
