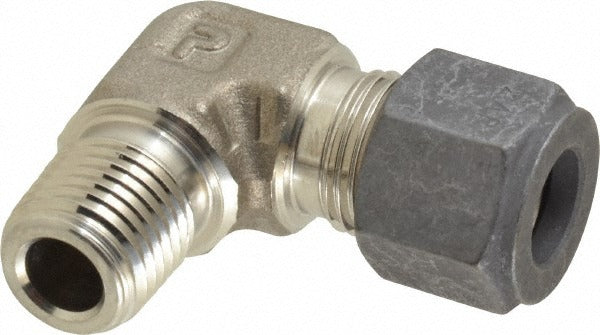

Parker 6-4 Cbz-ss Compression Male Elbow 1/4 in Ss

Product Description

The PARKER 6-4 CBZ-SS is a compression tube male elbow fitting machined from stainless steel. It connects a compression tube end to a male NPT threaded port, making a 90-degree direction change in a fluid or gas line. The 1/4-inch thread size and Compression x MNPT end configuration suit high-pressure instrumentation, pneumatic, and process tubing runs. With a maximum working pressure of 6600 psi, this fitting is built for demanding service in environments where corrosion resistance and leak-free performance are required. Licensed plumbers, HVAC technicians, and instrumentation mechanics are the typical installers.

This fitting is used in residential and commercial applications where stainless steel is specified for corrosion resistance or cleanliness requirements. Common install scenarios include instrument tubing panels, refrigeration and HVAC copper or stainless tube runs, hydraulic control lines, and process piping where an NPT port transitions to a compression tube connection. The male NPT end threads directly into a valve body, manifold, or equipment port, while the compression end accepts and secures the tubing with a ferrule and nut.

Key Features

• Stainless steel construction provides corrosion resistance in wet, chemical, and outdoor service environments
• Maximum working pressure of 6600 psi suits high-pressure instrumentation and process lines
• 1/4-inch thread size with MPT thread standard for direct engagement with standard NPT ports
• Compression x MNPT end connections allow tube-to-threaded-port transitions without soldering or welding
• 90-degree male elbow geometry routes tubing in tight spaces or panel installations
• Single-piece quantity packaging supports individual repair and maintenance applications

Compatibility

Designed as an OEM-style compression tube fitting for use in high-pressure instrumentation, pneumatic, and process tubing systems that require a 1/4-inch male NPT connection point and a compression tube end.

Installation Notes

Installation is typically performed by a licensed plumber, HVAC technician, or instrumentation mechanic. Shut off and depressurize the system completely before removing or installing any compression fitting. Hand-tighten the compression nut first, then advance with a wrench per standard compression fitting practice — do not overtighten, as stainless ferrules can seize or crack tubing. Apply thread sealant or PTFE tape to the male NPT threads in accordance with applicable IPC or IFGC requirements for the fluid or gas being handled.
