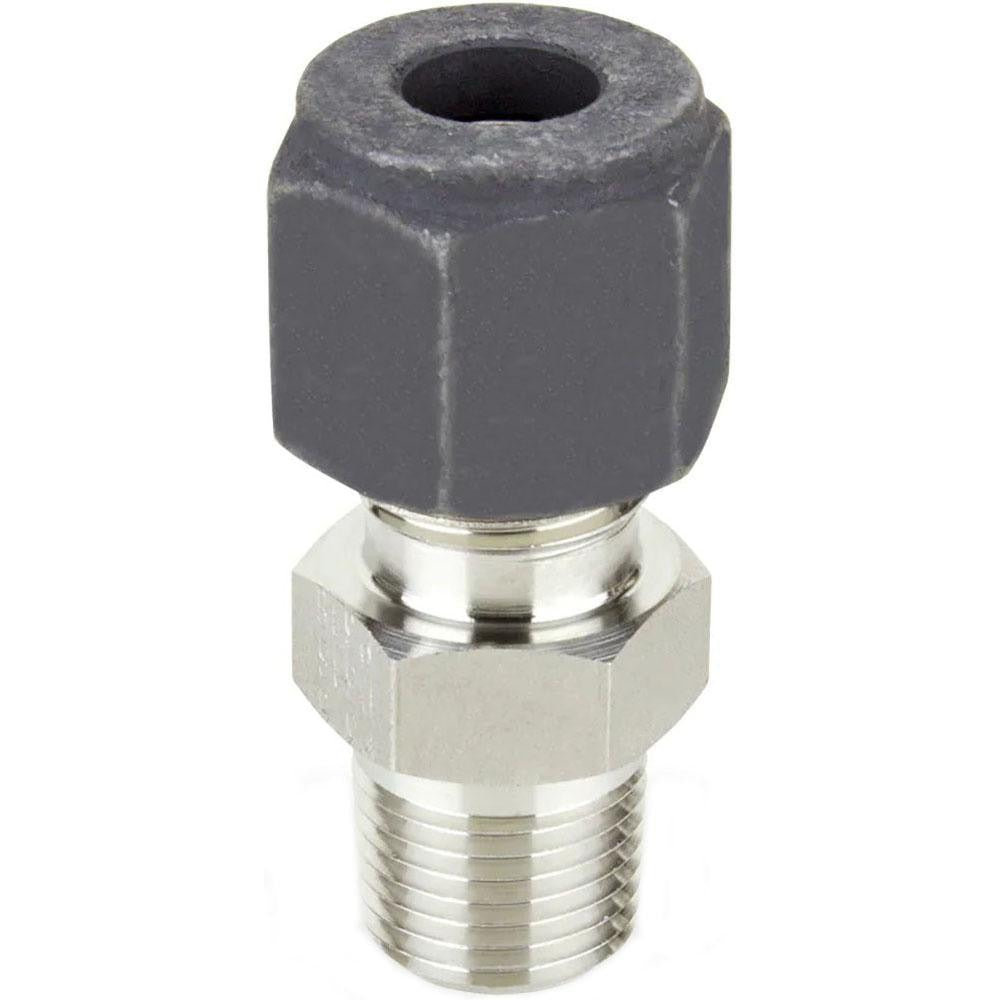

Parker 6-2 Fbz-ss Compression Tube Connector 1/8 in Mnpt

Product Description

The PARKER 6-2 FBZ-SS is a stainless steel compression tube connector designed to join tubing to a male NPT threaded port. It features a compression end on one side and a 1/8 inch MNPT end on the other, creating a secure, leak-resistant connection in fluid and gas distribution systems. Rated to a maximum working pressure of 6600 psi, this fitting is built for demanding service environments where pressure integrity and corrosion resistance are critical. Licensed plumbers, pipefitters, and HVAC technicians install this type of fitting in instrumentation lines, control tubing, and process piping applications.

This compression-to-MNPT connector is suited for both commercial and industrial applications where stainless steel construction is required for corrosion resistance or cleanliness standards. It is commonly installed in instrument tubing runs, pneumatic control lines, hydraulic circuits, and refrigeration or process piping systems where a reliable tube-to-pipe transition is needed. At 1.38 inches overall length, it fits in tight spaces without sacrificing rated pressure performance.

Key Features

• Compression x MNPT end connections for tube-to-pipe transitions
• Stainless steel construction for corrosion resistance in harsh or wet environments
• 6600 psi maximum working pressure rating for high-pressure service
• 1/8 inch thread size with MPT thread standard
• Compact 1.38 inch overall length for installations with limited clearance

Compatibility

Designed as an OEM-style replacement or new-installation fitting for compression tube-to-MNPT connections in instrumentation, pneumatic, hydraulic, and process piping systems requiring a 1/8 inch male NPT port interface.

Installation Notes

Installation should be performed by a licensed plumber, pipefitter, or qualified HVAC technician in accordance with applicable codes such as the IPC or IFGC. Depressurize and isolate the system completely before removing or installing any fittings. Verify that tubing outside diameter and wall thickness are compatible with the compression end before tightening the ferrule. Do not overtighten the compression nut, as this can deform the ferrule and compromise the seal.
